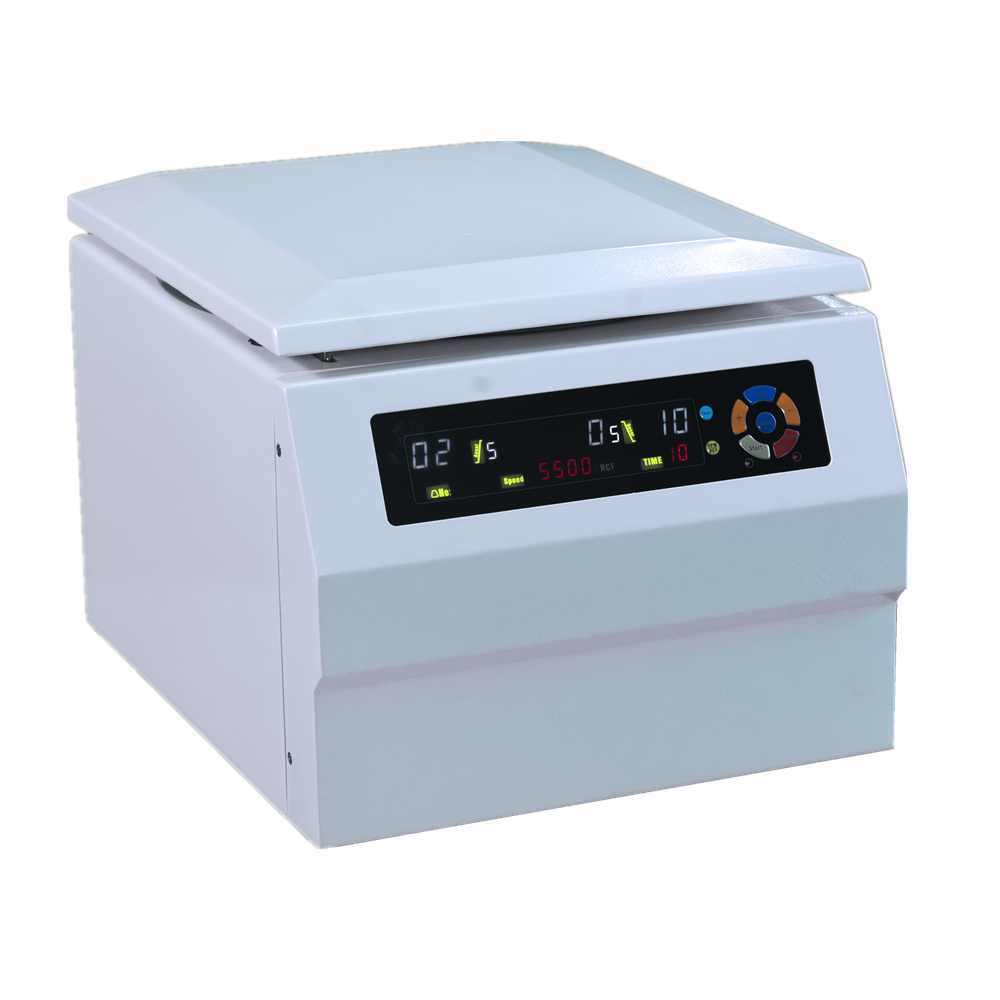

Max speed 5000rpm
Max RCF 4390xg
Max Capacity 4x250ml
Key Features:
1. Medium size,good compatibility, suitable for medium and small sized multi-functional experiments.
2. Controlled by microcomputers, AC frequency variable motor drive, able to operate stable and quietly
3. Multi-color LED display, user-friendly, clearer and more direct display. .
4. Automatic recognition of rotors and speed limit control, making centrifuging safer
5. User able to set RPM, timing, RCF and acceleration/deceleration mode according to experiment requirement
6. 10 types of accelerating/decelerating control, 15 groups of programming space, user able to program and call program freely
7. With electronic door lock, enhanced safety
8. Automatic calculation and display RCF value, RPM and centrifugal force at the same time.
9. Adopted special shock absorber with auto balance function.
10. A variety of stainless steel pipe rack, convenient replacement.
11. Set short time spcial centrifugal special inching key.
Technical Parameter:
Model | TM-5K | |||
Max RPM (rpm) | 5000rpm | Noise Level | φ380mm | |
Max RCF | 4390×g | Chamber diameter | ≤ 65dB(A) | |
Max Capacity | 4×250 ml | Outer Dimensions | 525×430×360mm | |
Timer | 1min~99min | Outer packing Dimensions | 600×500×440mm | |
Revolutions/min | ±20r/min | Net weight | 40kg | |
Voltage | AC 220±22V 50Hz 10A | Gross weight | 48kg | |
Power | 450W | / | / | |

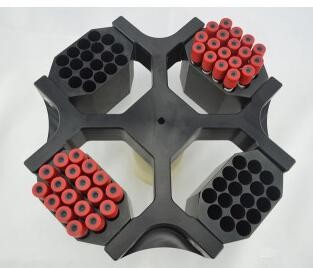

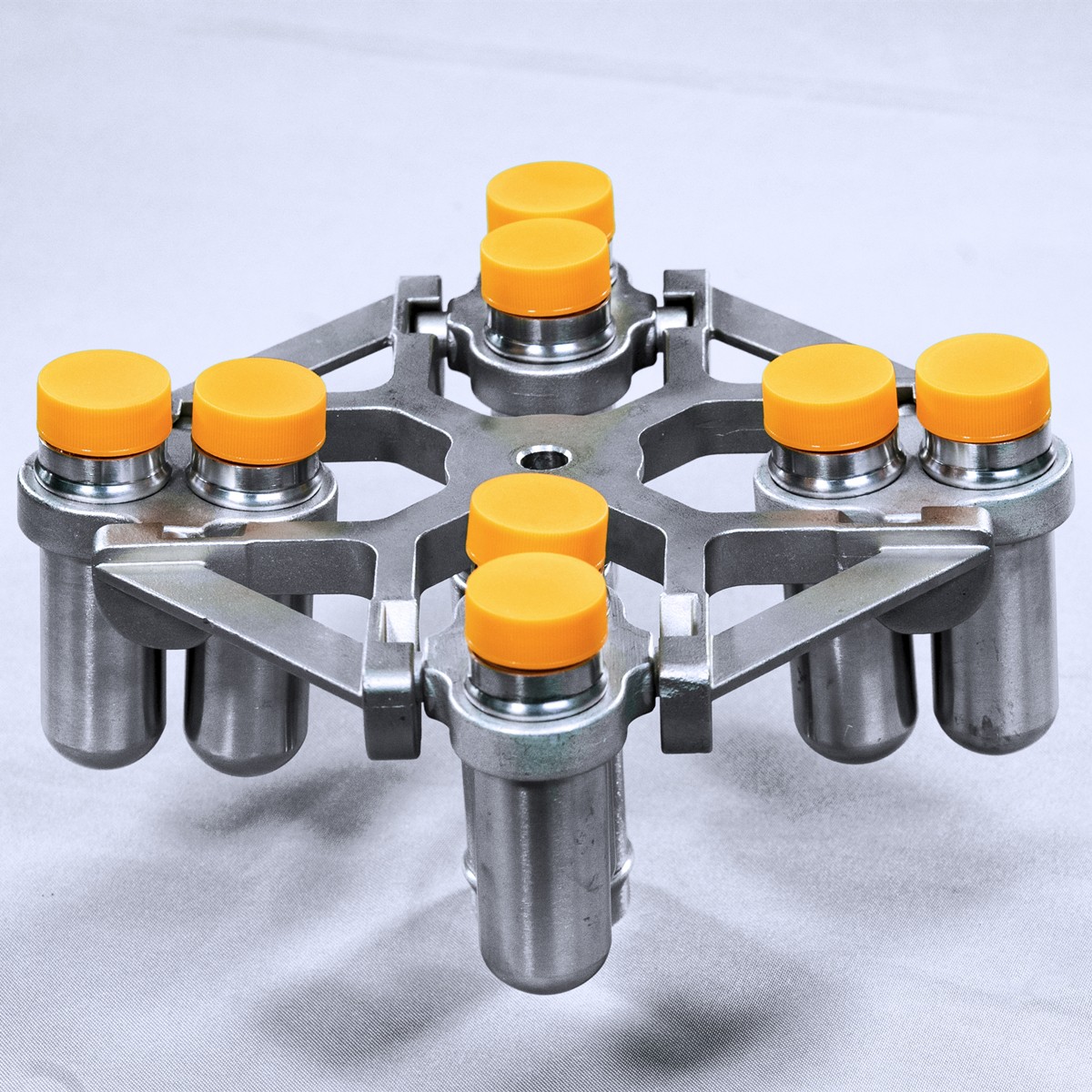

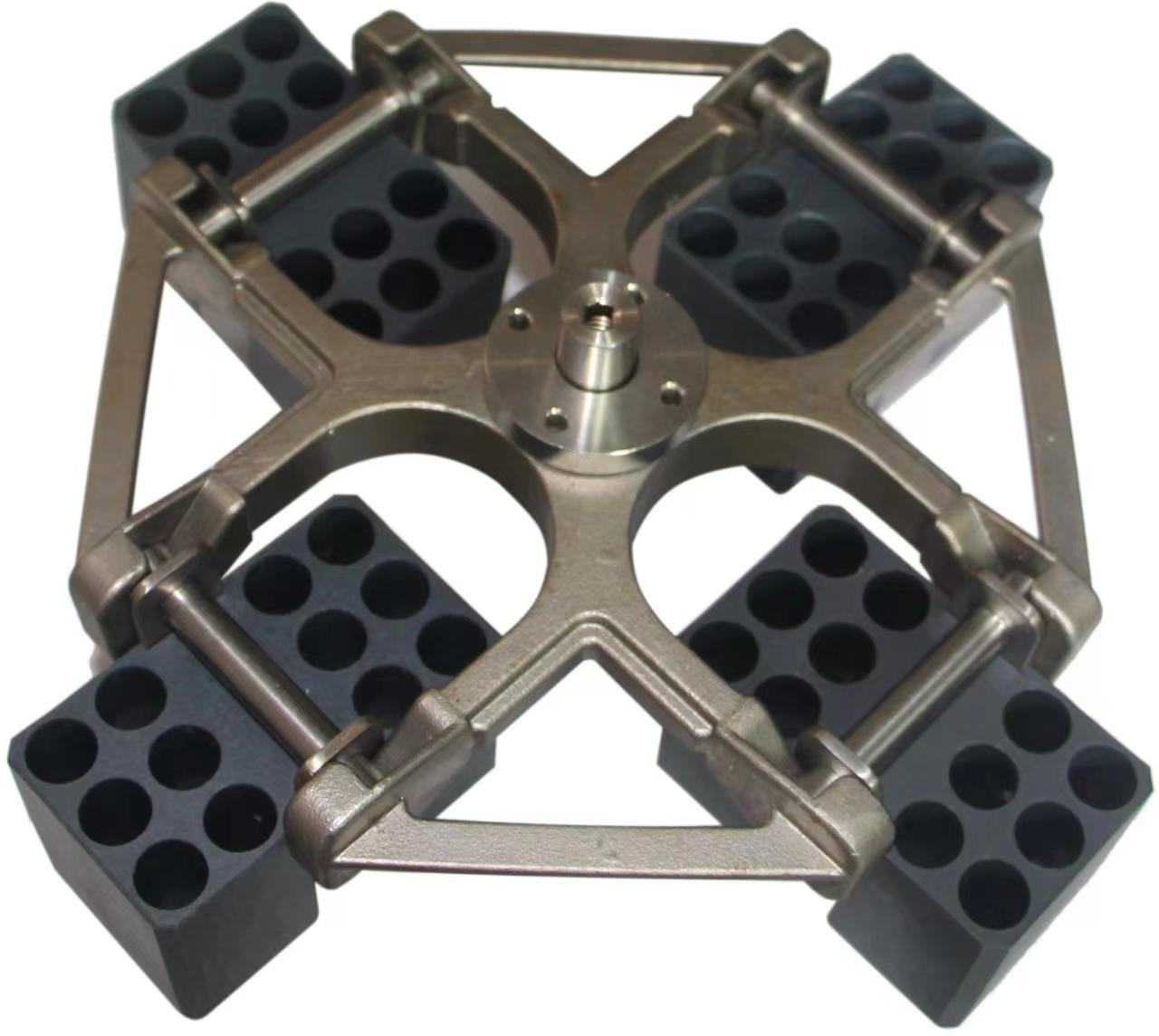

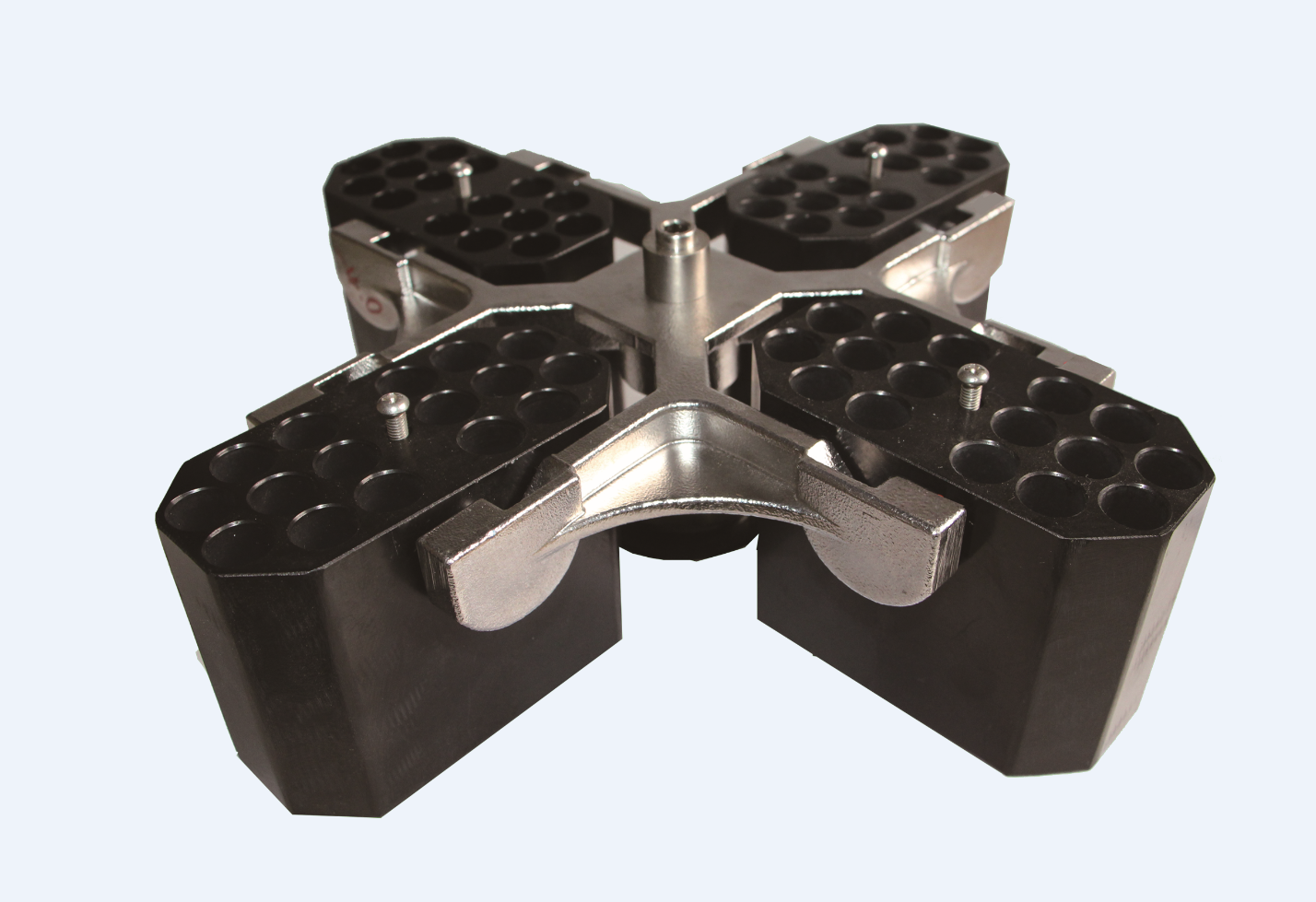

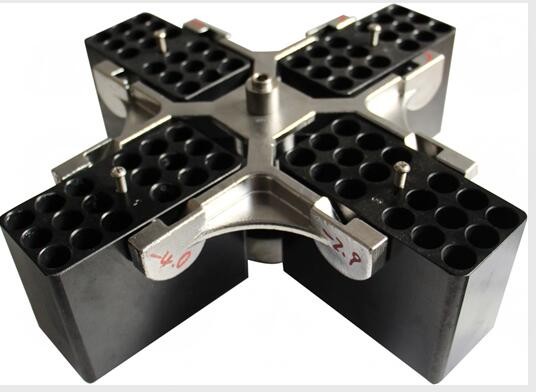

Rotor | No | Capacity | RPM/RCF | |
Angle Rotor(W) | 1 | 4/6×50ml | 5000rpm/ 4020×g | |
Swing-out Rotor | 2 | 4×50/100ml | 5000rpm/4390×g | |
3 | 8×50/100ml | 4000rpm/2810×g | ||
4 | 48×5/7ml | 4000rpm/2810×g | ||
5 | 64×5/7ml | 4000rpm/2810×g | ||
6 | 16×10/15ml | 4000rpm/2810×g | ||
7 | 24×10/15ml | 4000rpm/2810×g | ||
8 | 32×10/15ml | 4000rpm/2810×g | ||
9 | 48 tubes uncap basket | 4000rpm/3500×g Φ13×75-106 | ||

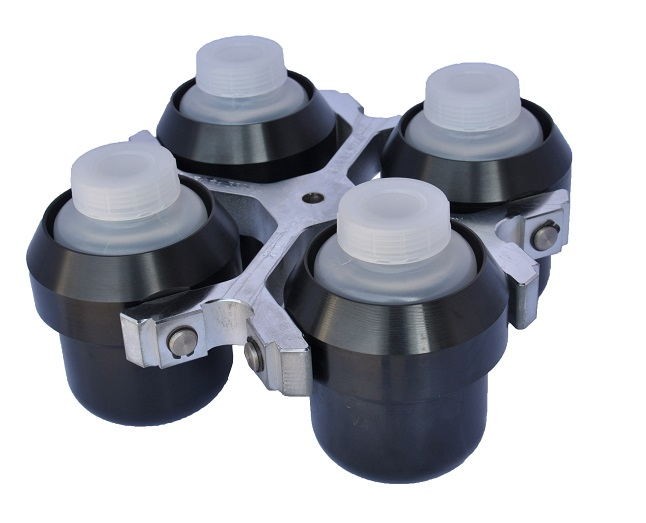

10 | 4×250ml | 4000rpm/3500×g | ||
Micro plates rotor | 11 | 2×2×96 Hole | 4000rpm/2300×g | |
12 | 2×2×48 Hole | 4000rpm/1700×g |
