Max speed 5000rpm
Max RCF 5310xg
Max Capacity 4x750ml
Key Features:
Controlled by computers, AC frequency variable motor drive, able to operate stably and quietly
Multi-color LED displaying parameters including RPM, eccentricity, temperature and time，Able to change parameters anytime during operation without the need to stop the machine
Able to configure centrifugal force, RCF and interchangeable, able to observe anytime
Equipped with short spin press button
10 types of acceleration and deceleration control, the 9th control able to achieve free stopping time longer than 540s, able to satisfy the requirement of some special samples.
Second display for countdown less than one minute
Adopted electronic door lock, inner chamber protected by steel materials
Suitable for radioactive immunology, biochemistry, pharmaceutics, isolation and purification of blood samples.
Centrifuge Specifications and Optional Rotors：

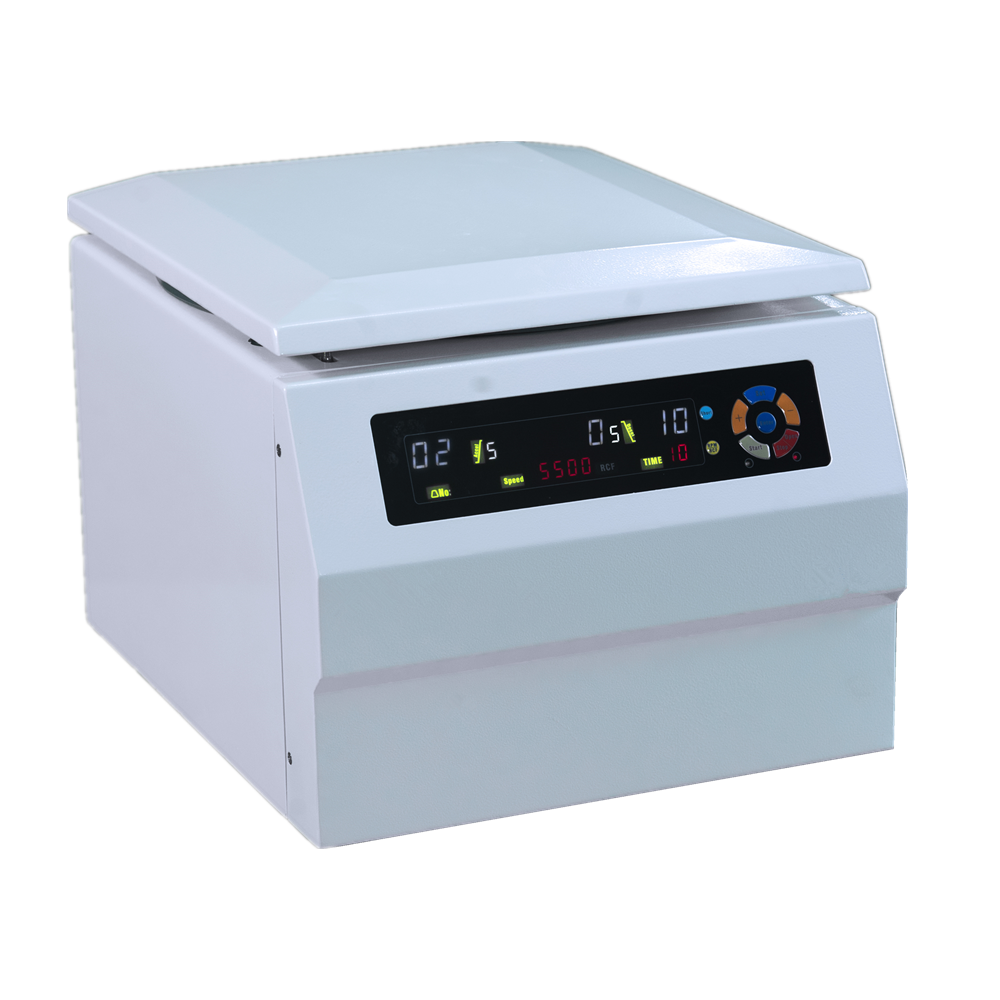

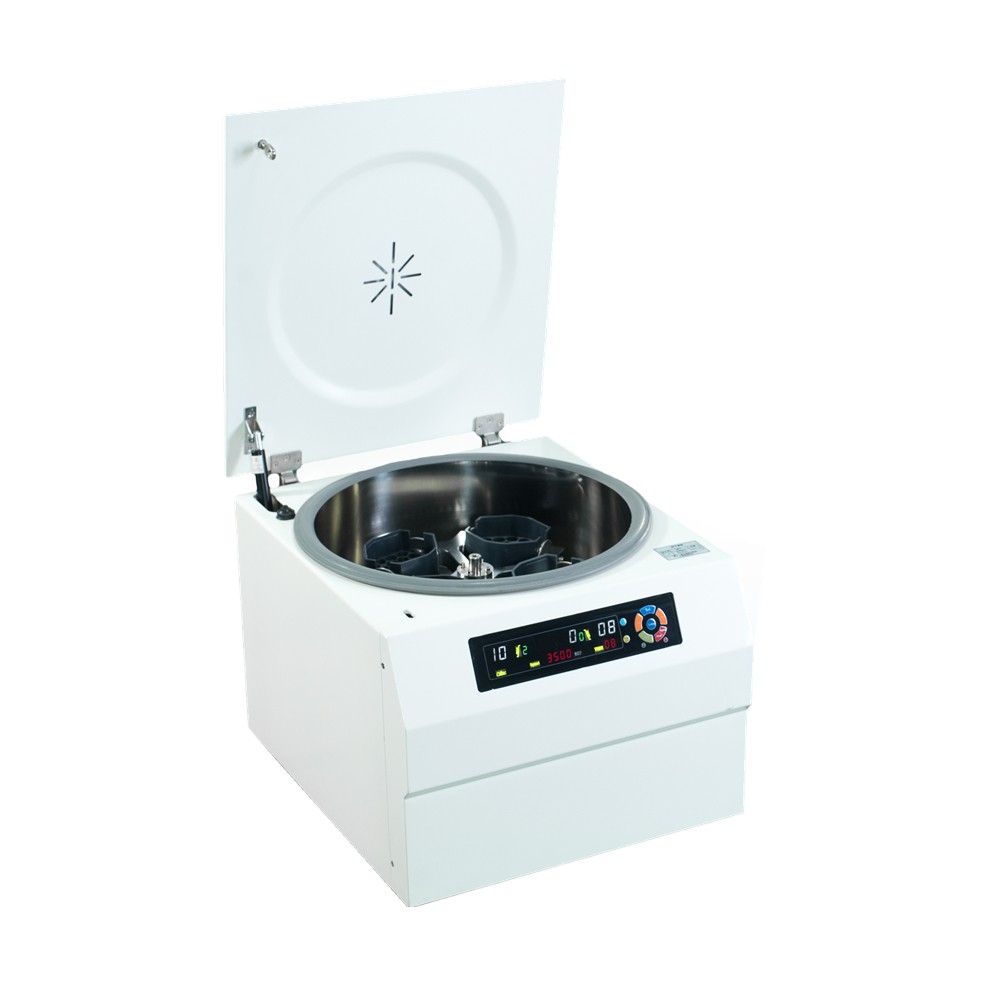

Model | TL-5K | |||
maximum RPM | 5500rpm | Noise level | < 65dB（A） | |
maximum RCF | 5310 | centrifuge chamber diameter | φ420mm | |
maximum capacity | 4×750ml | dimensions | 560×460×400mm | |
Timing range | 1min～99min | packaging dimensions | 660×560×500mm | |
RPM accuracy | ±20r/min | Net Weight | 50kg | |
power supply | AC 220±22V 50Hz 10A | Gross Weight | 55kg | |
Power | 750W | / | / | |

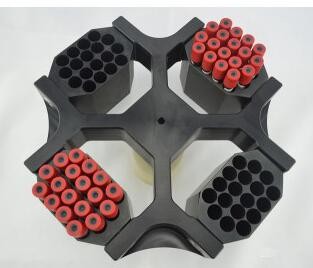

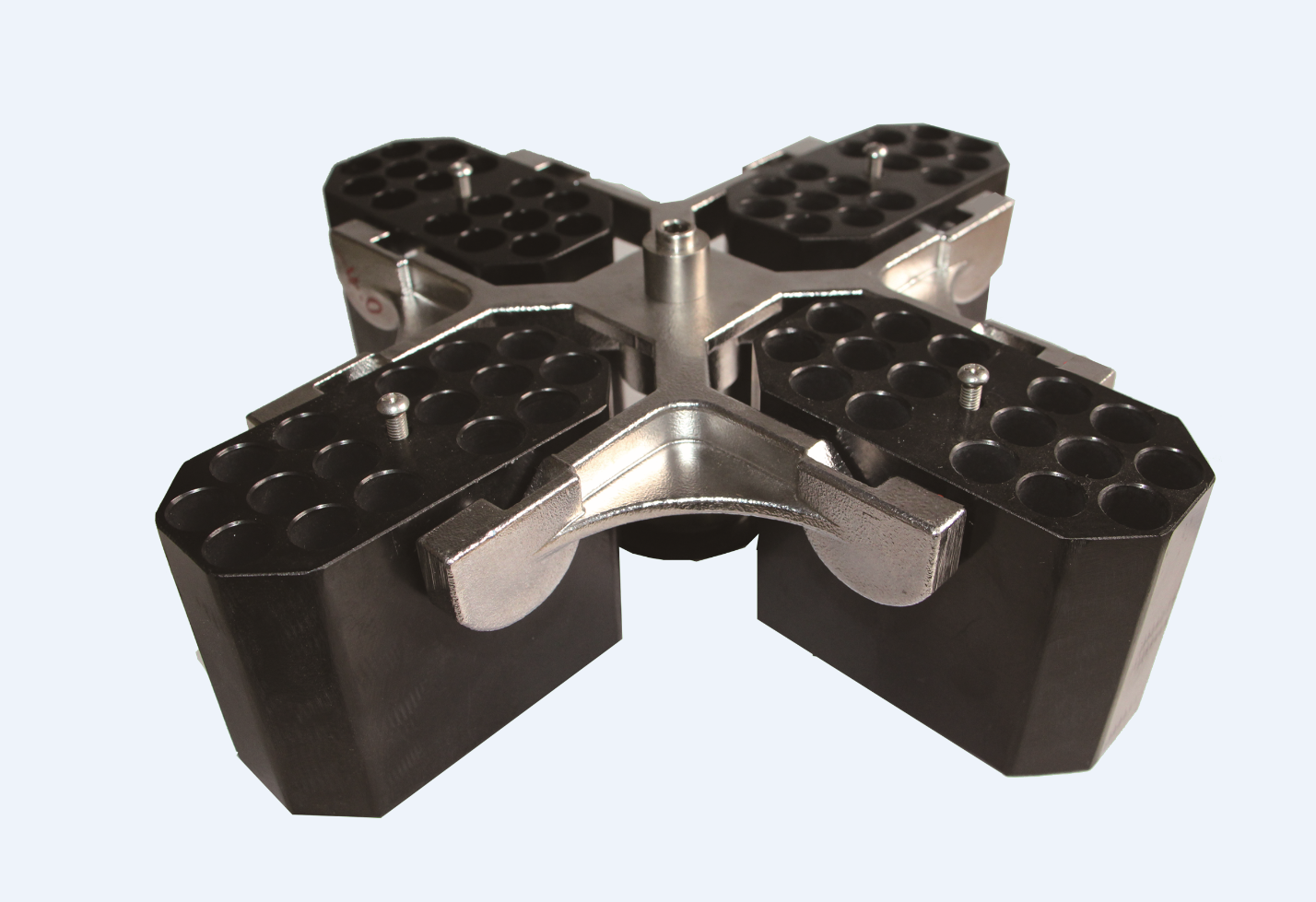

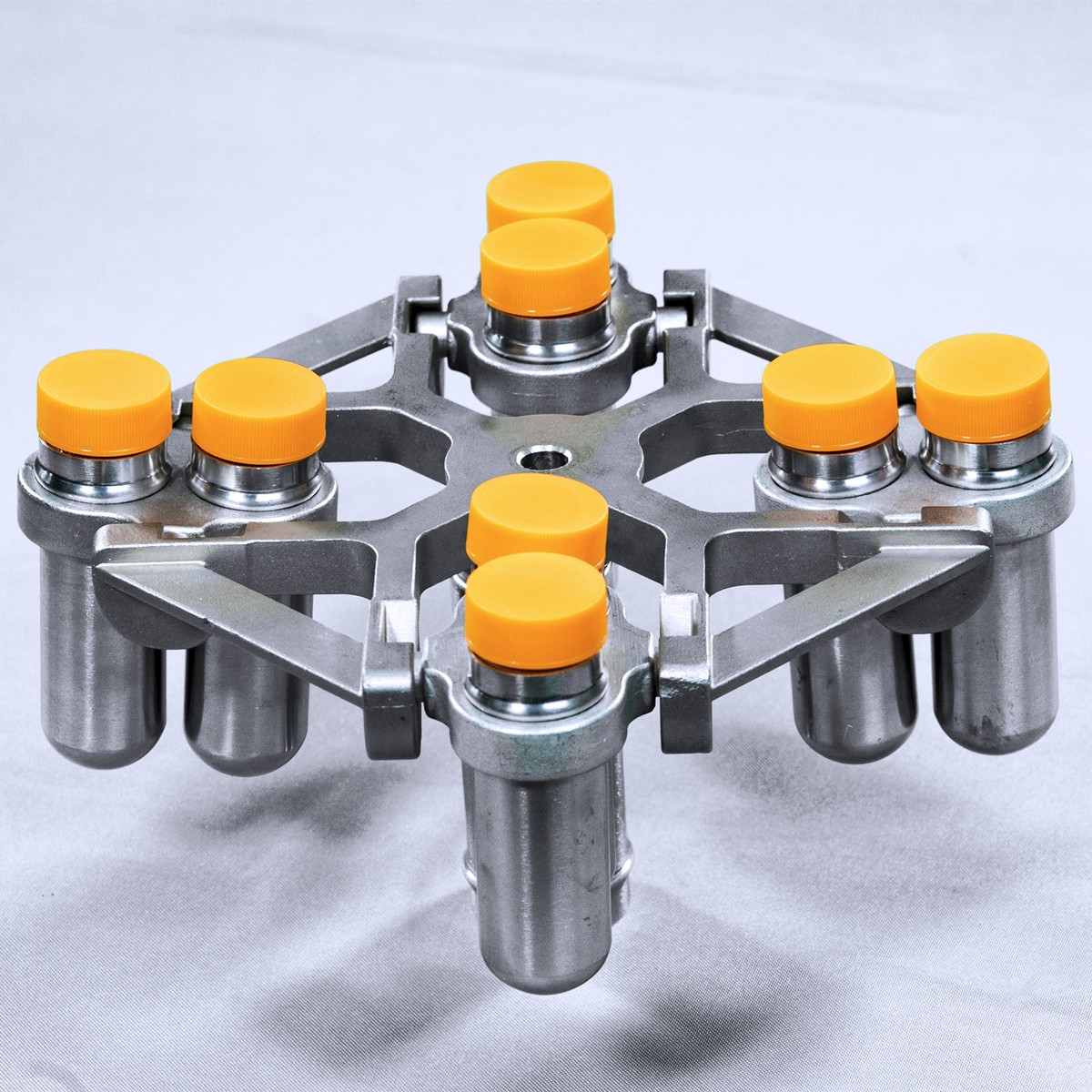

Rotor type | Number | Rotor Capacity | RPM/RCF | |
Horizontal Rotor
| 1 | 4×50ml | 5500rpm/5310×g | |
2 | 4×100ml | 5000rpm/4390×g | ||
3 | 8×50ml | 4000rpm/2810×g | ||
4 | 16×10/15ml | 4000rpm/2810×g | ||
5 | 24×10/15ml | 4000rpm/2810×g | ||
6 | 32×10/15ml | 4000rpm/2810×g | ||
7 | 48×5/7ml | 4000rpm/2810×g | ||
8 | 64×5/7ml | 4000rpm/2810×g | ||
9 | 72×5/7ml | 4000rpm/2810×g | ||
10 | 96×5/7ml | 4000rpm/3580×g | ||
11 | 120×5/7ml | 4000rpm/3580×g | ||
Rotor type | Number | Rotor Capacity | RPM/RCF | |
Horizontal Rotor

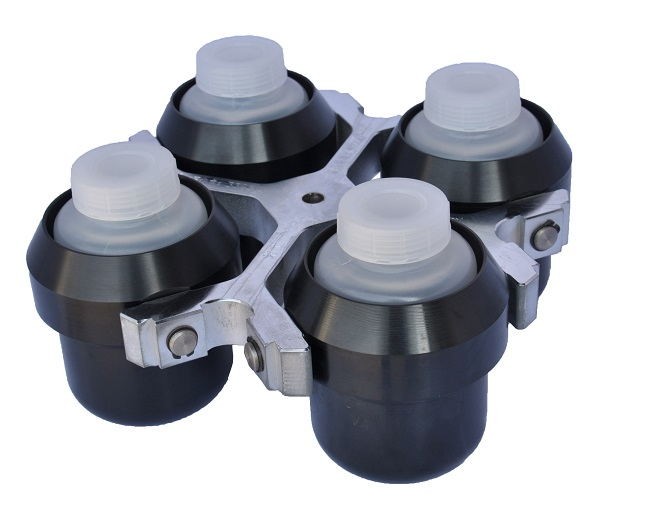

| 12 | 4×750ml | 4000rpm/3580×g | |
13 | 4×500ml | 4000rpm/3580×g | ||
14 | 4×250ml | 4000rpm/3500×g | ||
4×250ml Round tube | 4000rpm/3500×g | |||
15 | 6×250ml | 4000rpm/3500×g | ||

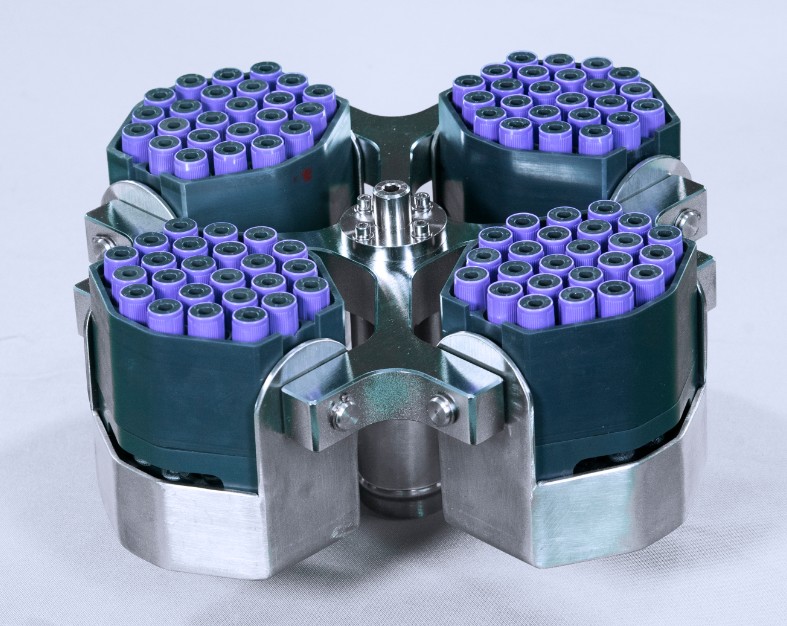

16 | 48 tubes Un-cap basket | 4000rpm/3500×g Φ13×75-106 | ||
17 | 72 tubes Un-cap basket | 4000rpm/3500×g Φ13×75-106 | ||
18 | 96 tubes Un-cap basket | 4000rpm/3580×g Φ13×75-106 | ||
Enzyme labelled plate Rotor | 19 | 4×2×96 wells | 4000rpm/3550×g | |
20 | 2×2×96 wells | 4000rpm/2300×g | ||
21 | 2×2×48 wells | 4000rpm/1700×g | ||
