Max Speed 18500rpm
Max RCF 23900xg
Max Capacity 4x100ml
Key Features:
1. The volume is moderate, with excellent compatibility, suitable for small and medium-sized multi-functional experimental requirements.
2. Microcomputer control, variable frequency motor drive, running smoothly, quiet.
3. 10 gear for accelerating and deceleration control, The free stopping time of the ninth gears can reach more than 540S, which meets the requirements of the special separation products.
4. Multi-color LED display, user-friendly, clearer and more direct display.
5. Automatic calculation and display RCF value, RPM and centrifugal force at the same time.
6. With electronic door lock, enhanced safety.
7. Equipped with a variety of capacity rotor, suitable for different experimental needs
8. Set short time spcial centrifugal special inching key.
Technical Parameter:
Model | TG-18K | |||
Max RPM (rpm) | 18500rpm | Chamber diameter | φ320mm | |
Max RCF | 23900×g | Noise Level | ≤ 65dB(A) | |
Max Capacity | 4×100ml | Outer Dimensions | 440×360×330mm | |
Timer | 1min~99min | Outer packing Dimensions | 545×430×395mm | |
Revolutions/min | ±20r/min | Net weight | 28kg | |
Voltage | AC 220±22V 50Hz 10A | Gross weight | 35kg | |
Power | 500W | / | / | |

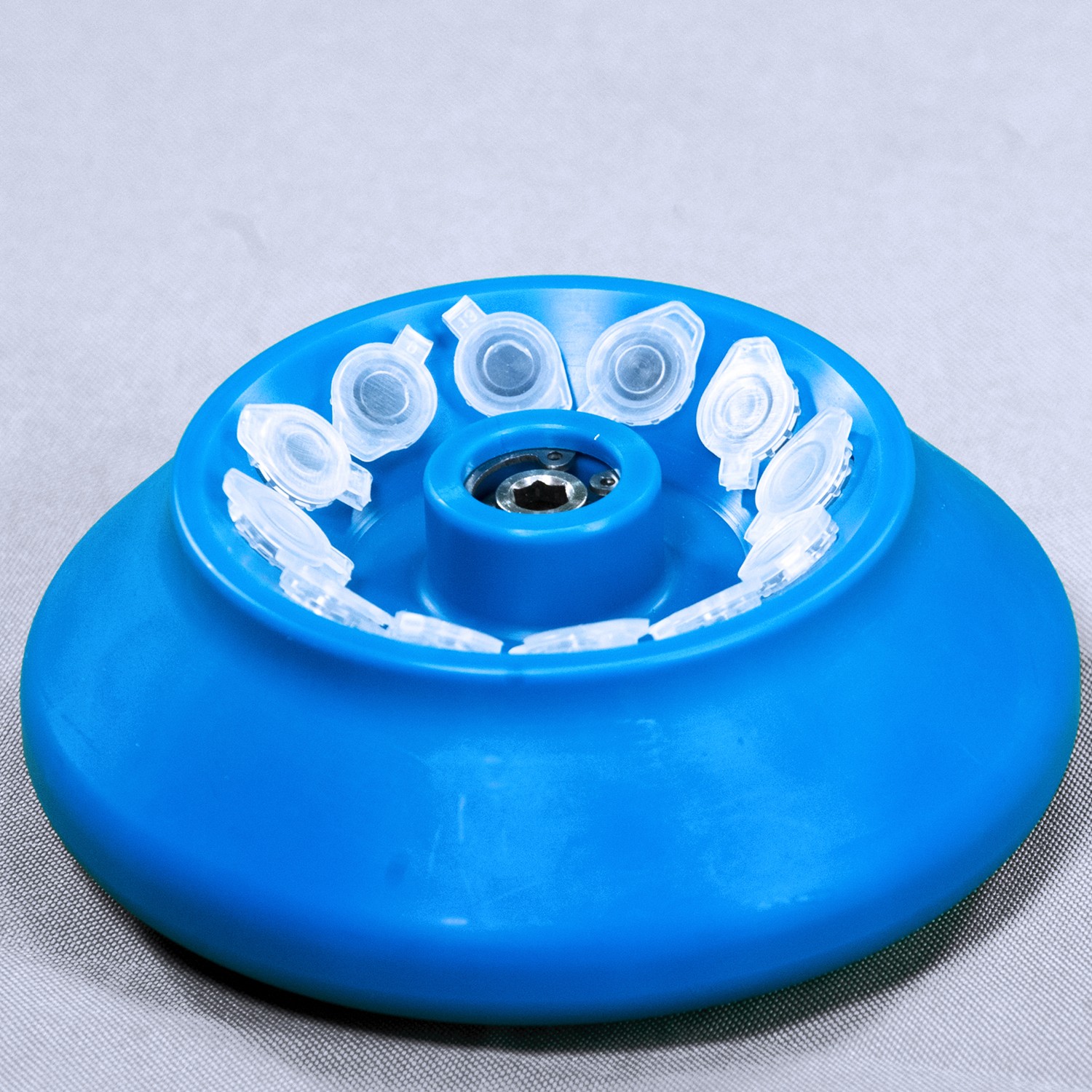

Rotor | No | Capacity | RPM/RCF | |
Angle Rotor | 1 | 12/16×1.5/2.2ml | 18500rpm/23900×g | |

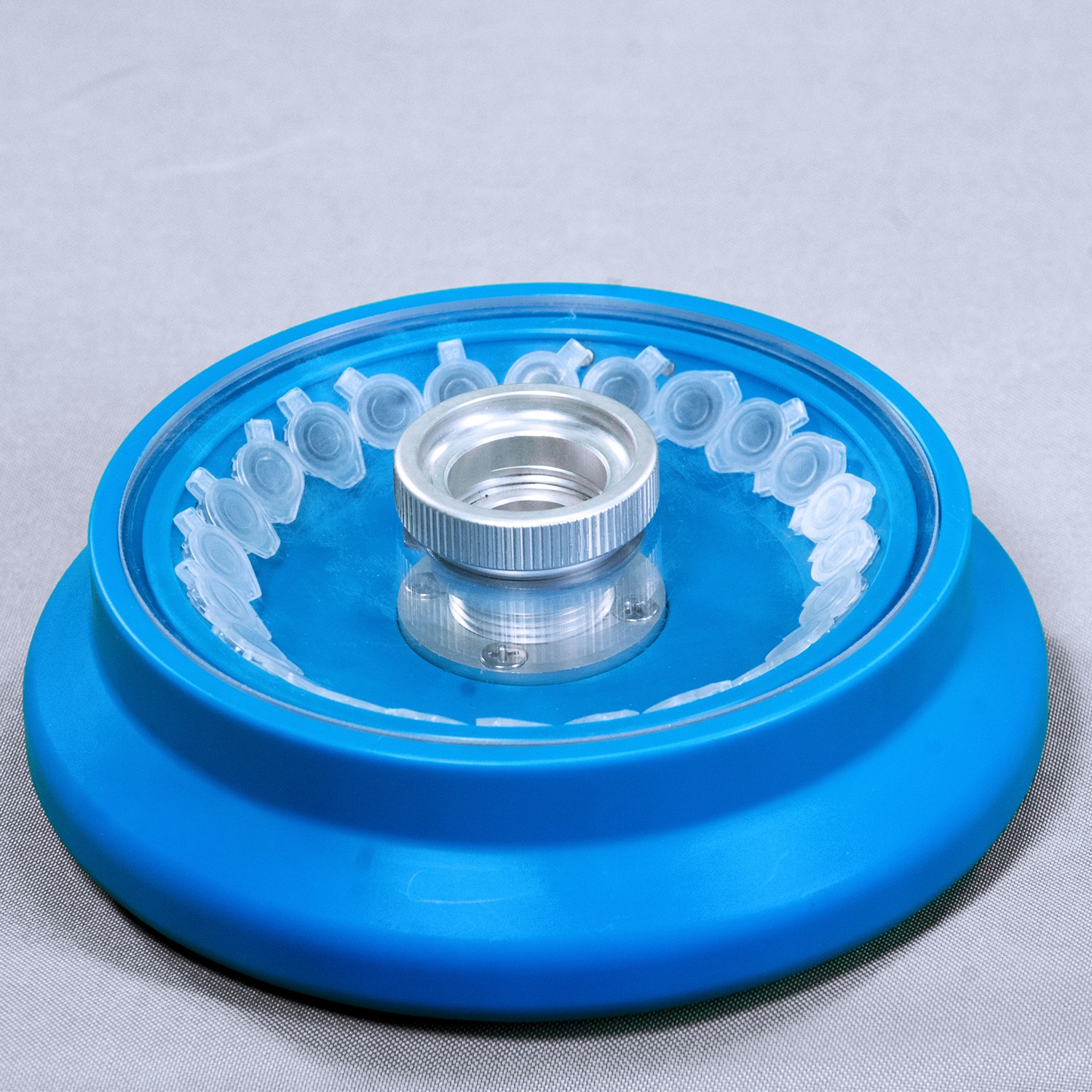

2 | 18×0.5ml | 16000rpm/16000×g | ||
3 | 10/12×5ml | 15000rpm/15940×g | ||
4 | 24×1.5/2.2ml | 14000rpm/18757×g | ||

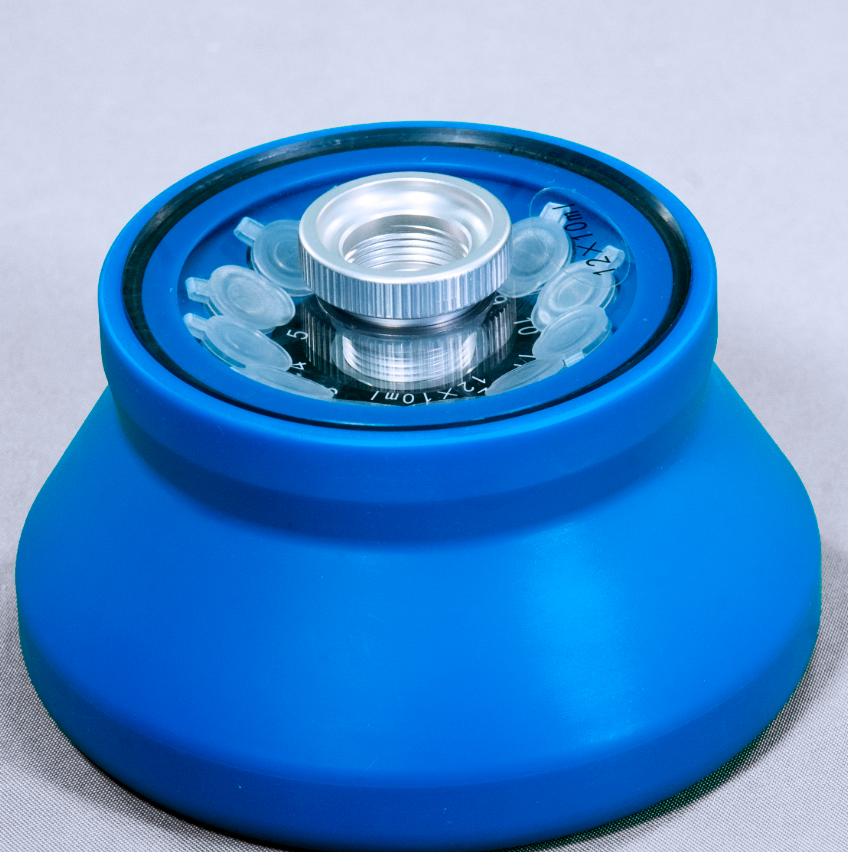

5 | 12×10ml | 13000rpm/17370×g | ||
6 | 12×15ml Conical Tube | 10000rpm/9690×g | ||

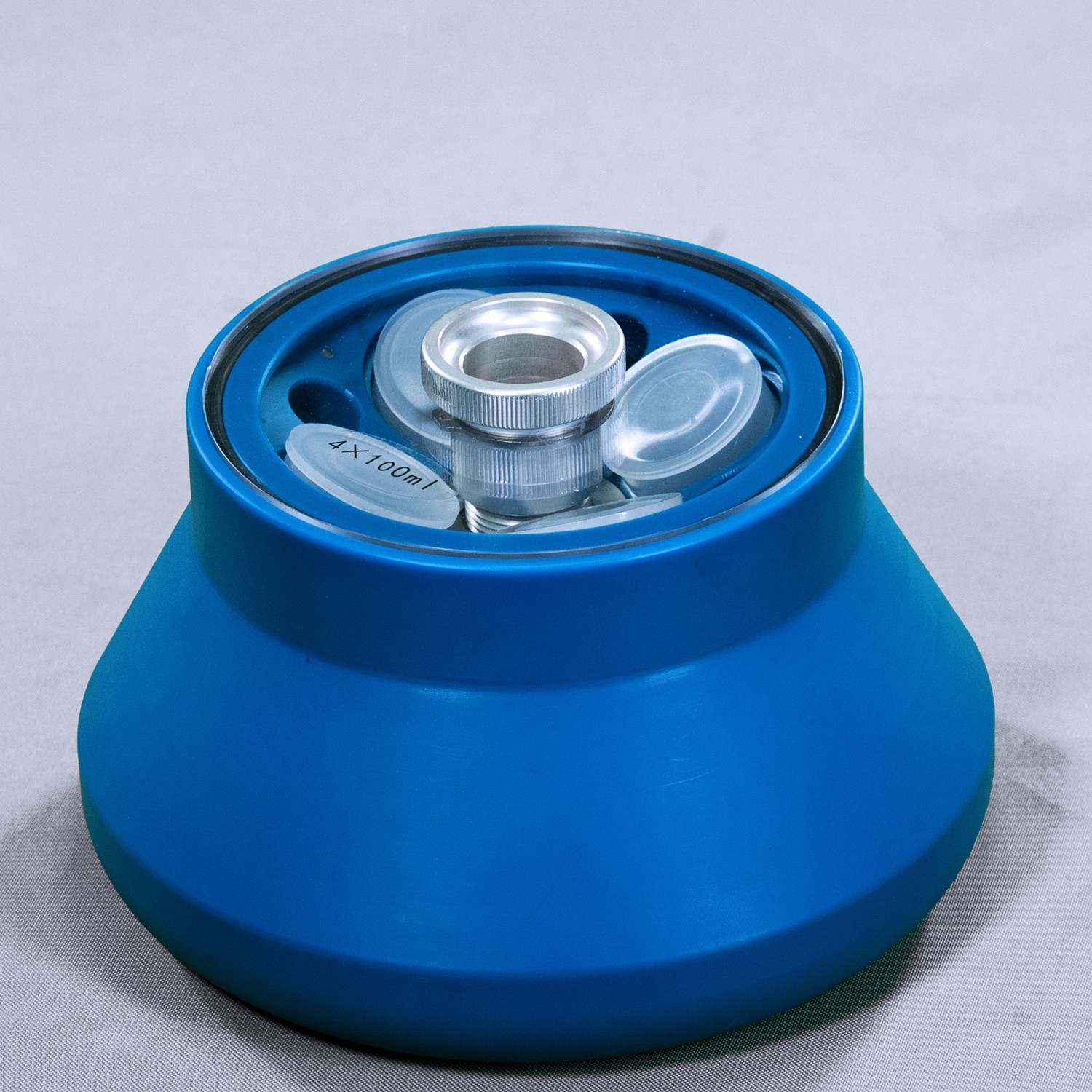

7 | 4×100ml | 10000rpm/9690×g | ||

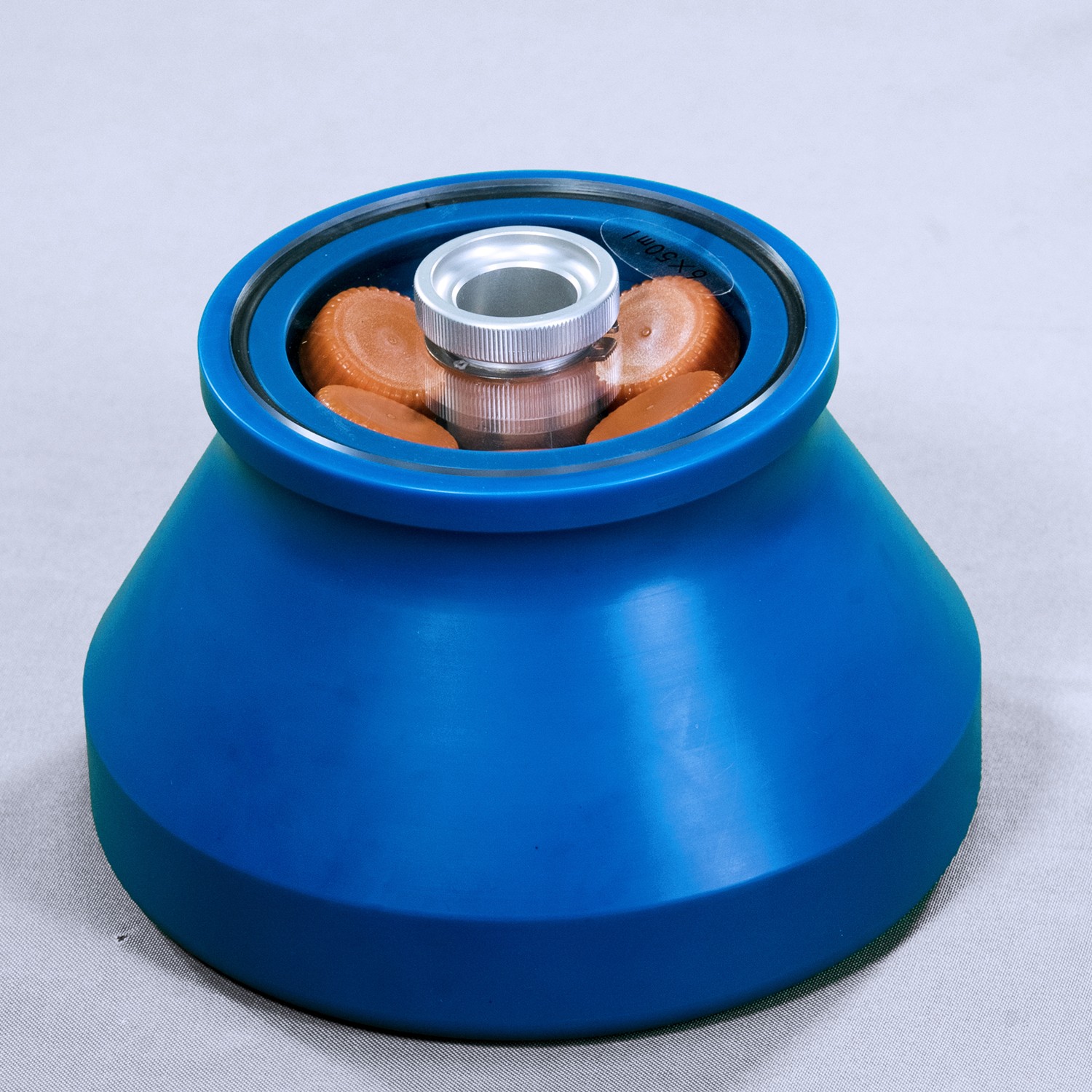

8 | 6×50ml round tube | 12000rpm/15285×g | ||
9 | 6×50ml Conical Tube | 11000rpm/12840×g |
