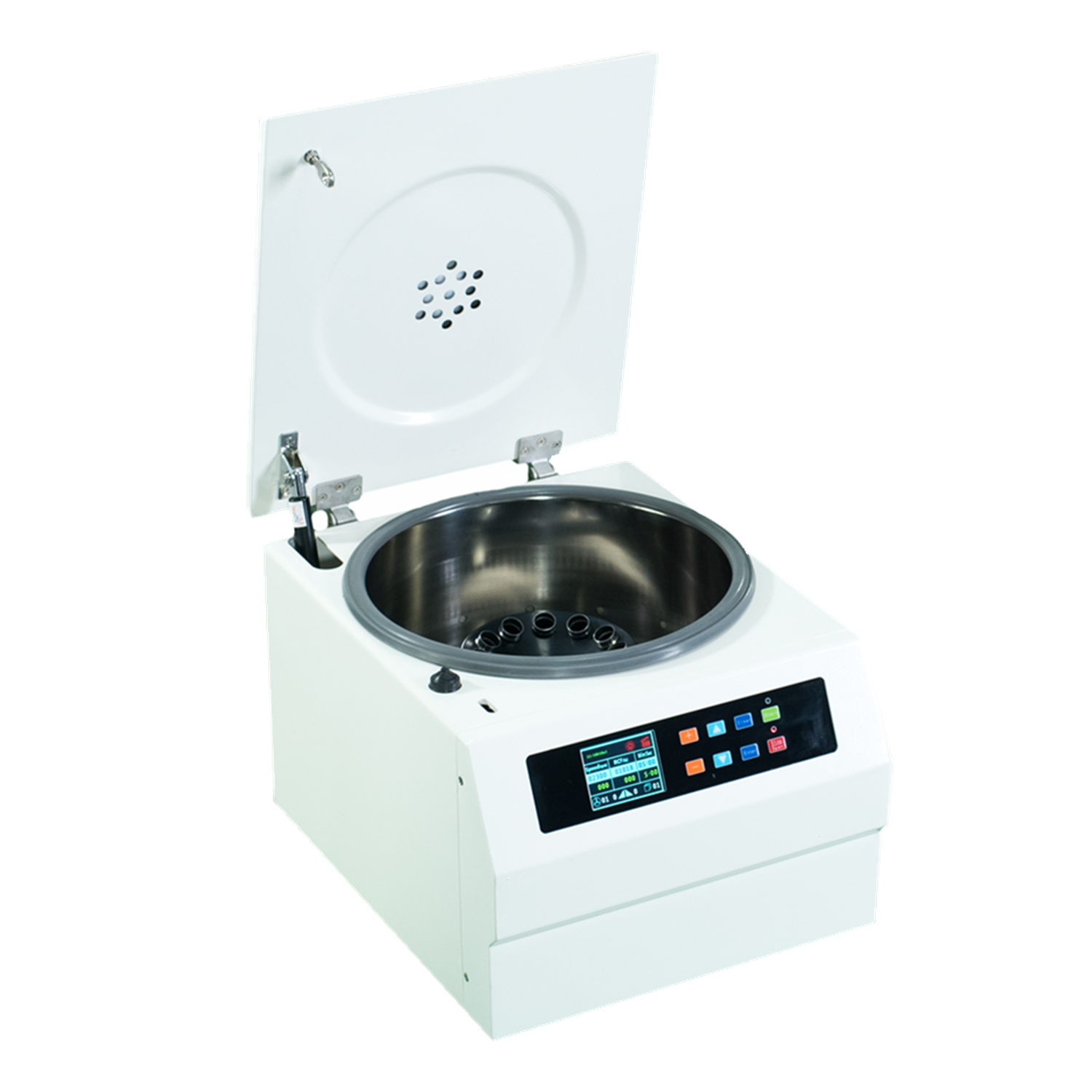

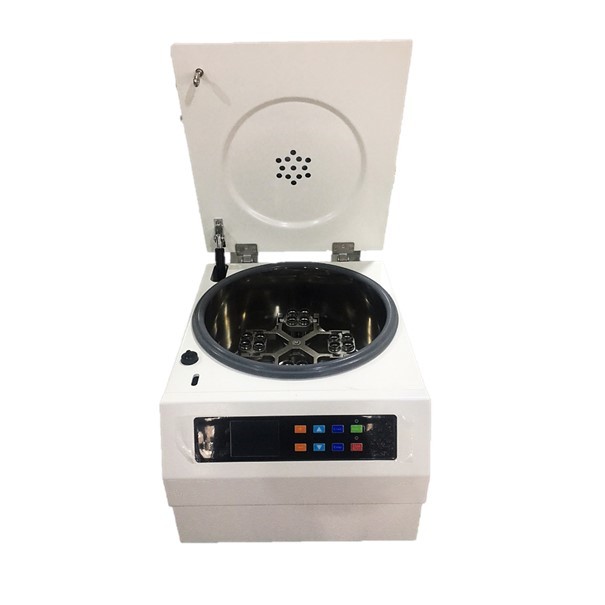

TD-6K Tabletop Centrifuge 4x100ml

Max speed 6000rpm
Max RCF 4430xg
Max Capacity 4x100ml

EMAIL

Key Features:



1.  Compact size; great space saver for the lab

2.  Steel structure, centrifuge chamber made of stainless steel.

3.  Controlled by microcomputers, AC frequency variable motor drive, able to operate stabland quietly

4.  Multi-color LCD display, user-friendly, clearer and more direct display. .

5.  Able to change parameters anytime during operation without stopping the machine

6.  automatic calculation and simultaneous display of RCF/RPM.

7.  10 types of accelerating/decelerating control, 40 groups of programming space, user able to program and call program freely

8.  With electronic door lock, enhanced safety

9.  This model is widely used in laboratories in hospitals and institutions due to its super high performance cost ratio and reliable quality





Technical Parameter



Model

TD-6K

Max RPM  (rpm)

6000rpm

Noise Level

≤ 65dBA

Max RCF

4430×g

Chamber diameter

φ350mm

Max Capacity

4×100ml

Outer Dimensions

475×390×320mm

Timer

1min99min

Outer packing Dimensions

545×430×395mm

Revolutions/min

±20r/min

Net weight

45kg

Voltage

AC 220V±22V50/60Hz10A

Gross weight

55kg

Power

150W

/

/

Rotor

No

Capacity

RPM/RCF

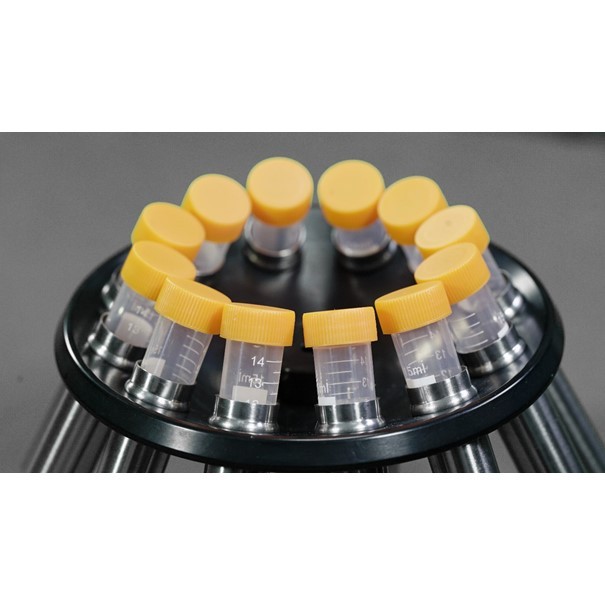

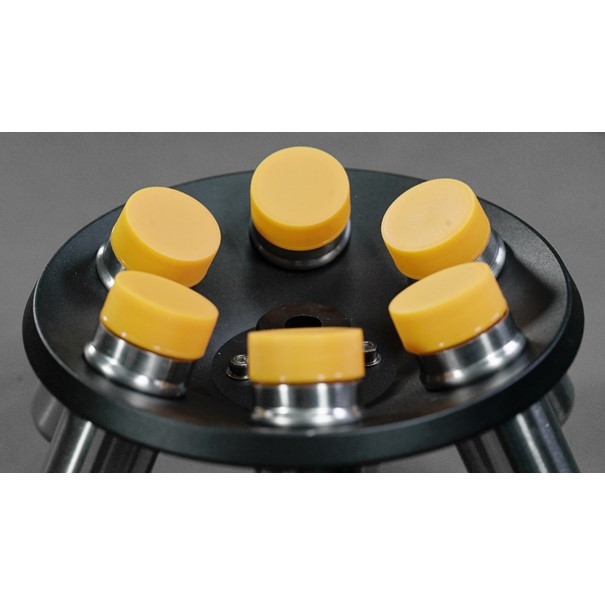

 Angle Rotor(W

1

6×50ml

6000rpm/ 4430×g

2

12×10ml

5000rpm/ 4020×g

3

12×15ml

5000rpm/ 4020×g

 Angle Rotor

4

12×10 ml

4200rpm/ 2450×g

5

12×15 ml

4200rpm/ 2450×g

6

12×20 ml

4200rpm/ 2450×g

7

18×10ml

4200rpm/ 2450×g

8

24×10ml

4200rpm/ 2450×g

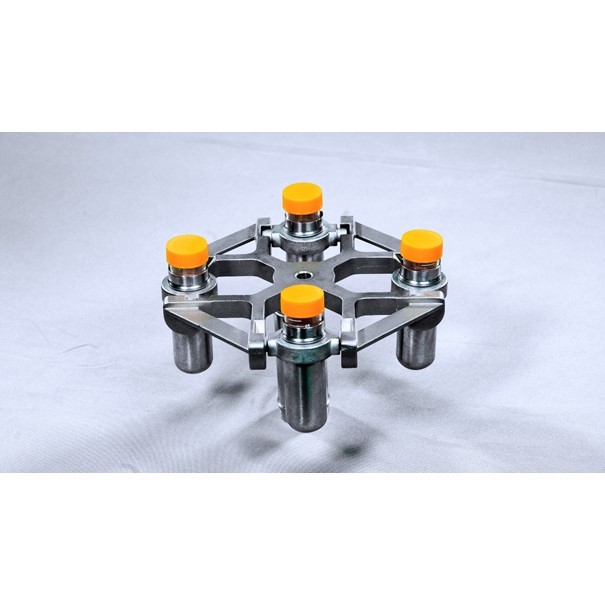

Swing-out Rotor(Y)

9

12/24×5ml

4200rpm/ 2450×g

10

12/24×10ml

4200rpm/ 3100×g

11

4/6×50ml

4200rpm/ 3100×g

12

8/16×10/15ml

4200rpm/ 3100×g

13

4×100ml

4200rpm/ 3100×g

Swing-out Rotor

14

16×15ml+4×50ml

4200rpm/ 3100×g

15

4×50ml

4200rpm/ 3100×g
