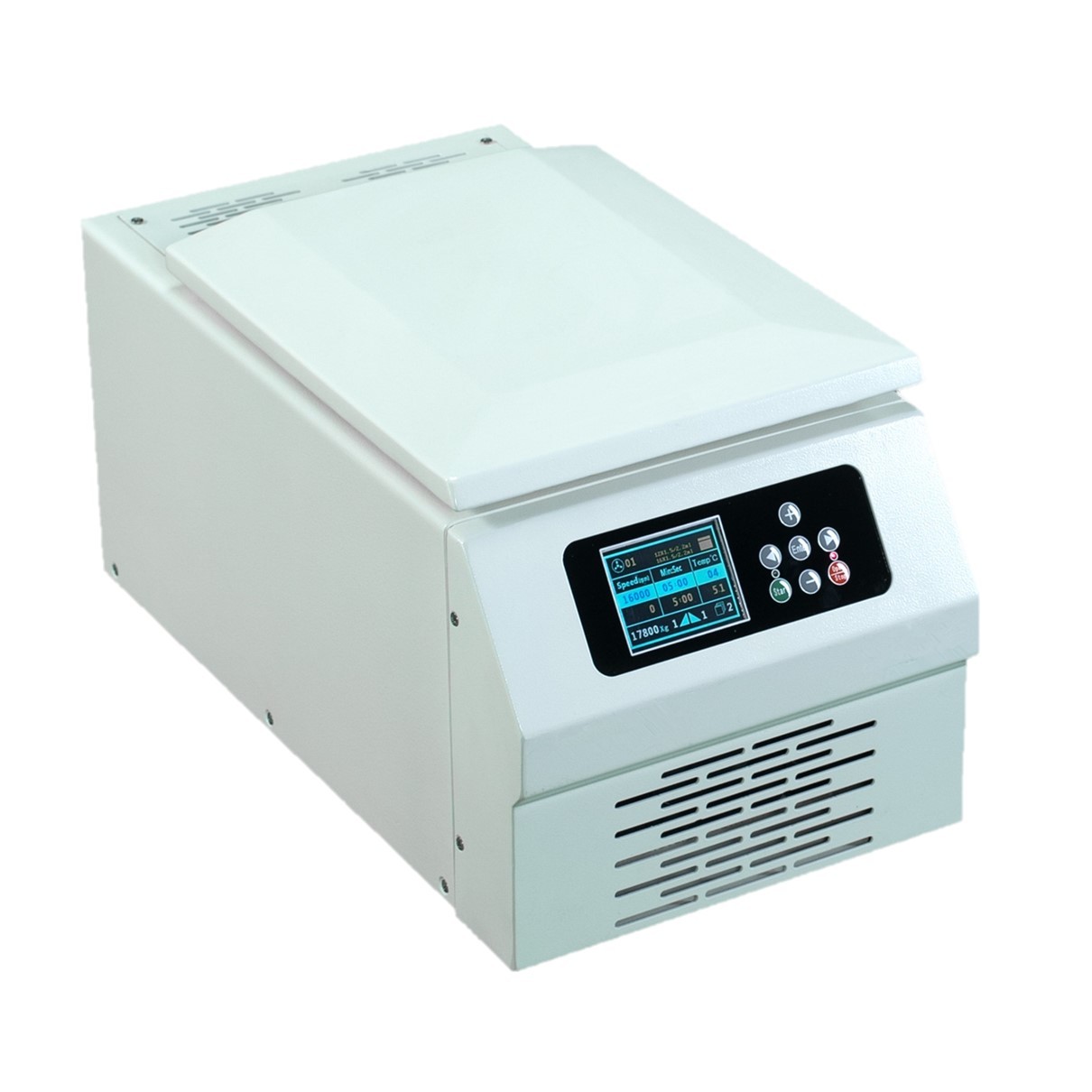

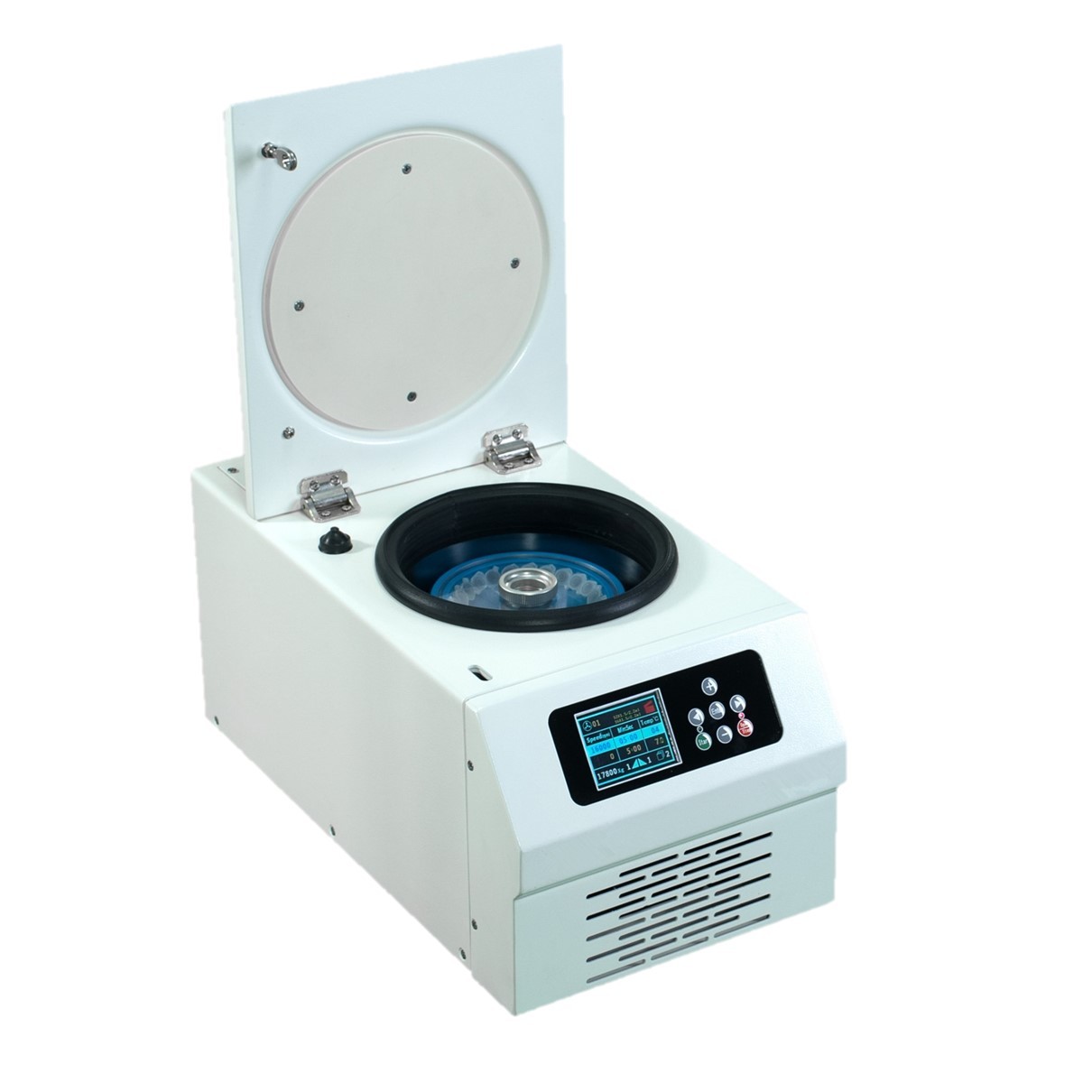

Micro Refrigerated Centrifuge
Max speed 16500rpm
Max RCF 18757xg
Max Capacity 24x1.5ml
1. This model has small footprint and compact design, therefore widely used in molecular biology and chemistry, as well as PCR laboratories. Equipped with rotors of multiple capacities, higher performance to cost ratio.
2. Steel structure, centrifuge chamber made of stainless steel.
3. AC frequency variable motor drive, able to operate stably and quietly。
4. 10 gear for accelerating and deceleration control, variable frequency motor, acceleration and deceleration faster. 40 groups of program storage space, users can program and adjust freely.
5. Multi-color LED display, user-friendly, clearer and more direct display.
6. Able to adjust timing and RPM during operation anytime, as well as to check centrifugal force without stopping the machine.
7. Automatic calculation and display RCF value of centrifugal force at the same time.
8. With electronic door lock, enhanced safety
9. Imported high efficiency environmental friendly refrigerating system, able to maintain temperature under 0℃ during maximum RPM.
Technical Parameter:
Model | TG-16KR | |||
Max RPM (rpm) | 16000rpm | Voltage | AC 220±22V 50Hz 10A | |
Max RCF | 18757×g | Power | 400W | |
Max Capacity | 10/12×5ml | Noise level | ≤ 65dB(A) | |
Timer | 1min~99min | centrifuge chamber diameter | Φ160mm | |
Temp Range | -20℃~40℃ | Inner Dimensions | 510X280X270 | |
Temp Accuracy | ±1.0℃ | packaging dimensions (length x width x height) | 610X380X370 | |
Revolutions/min | ±20r/min | Net weight | 40kg | |
/ | / | Gross weight | 45kg | |

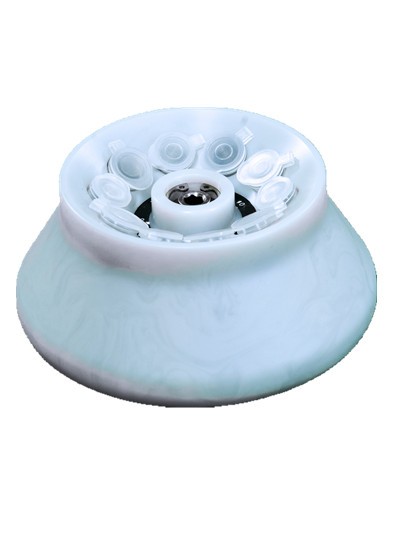

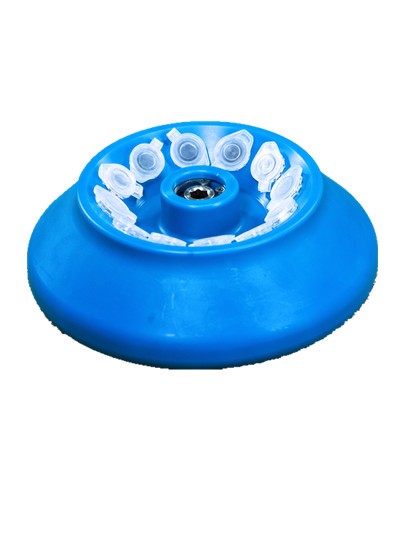

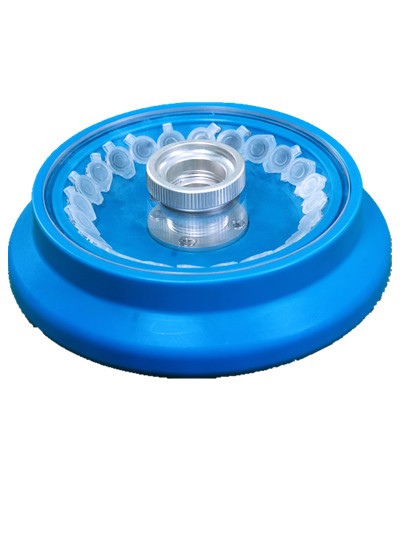

Rotor | No | Capacity | RPM/RCF | |
Angle Rotor | 1 | 12/16×1.5/2.2ml | 16000rpm/17800×g | |
2 | 18×0.5ml | 15000rpm/14080×g | ||
3 | 10/12×5ml | 15000rpm/15940×g | ||
4 | 24×1.5/2.2ml | 14000rpm/18757×g |
