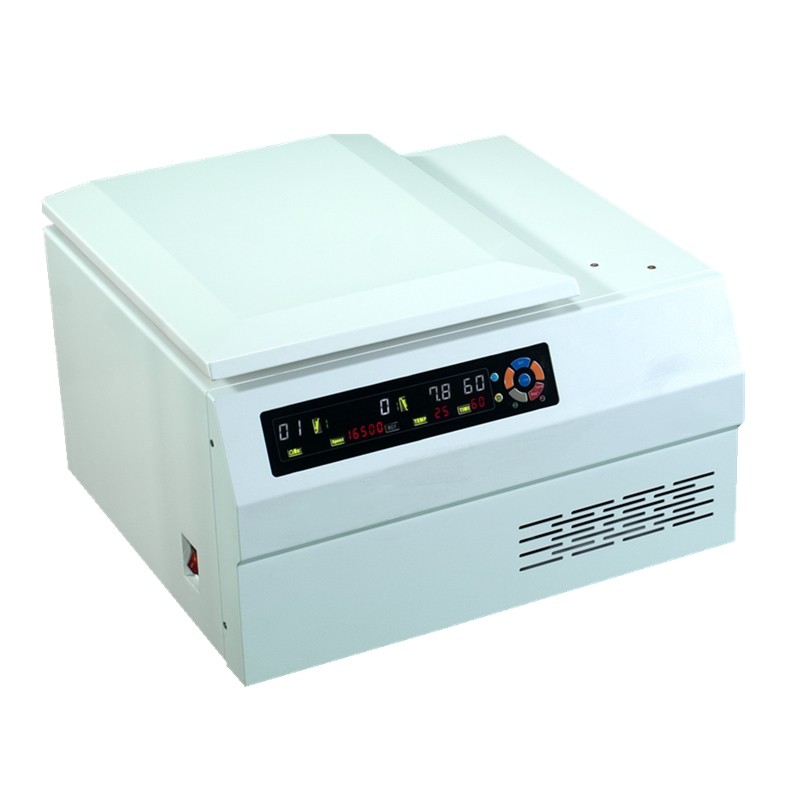

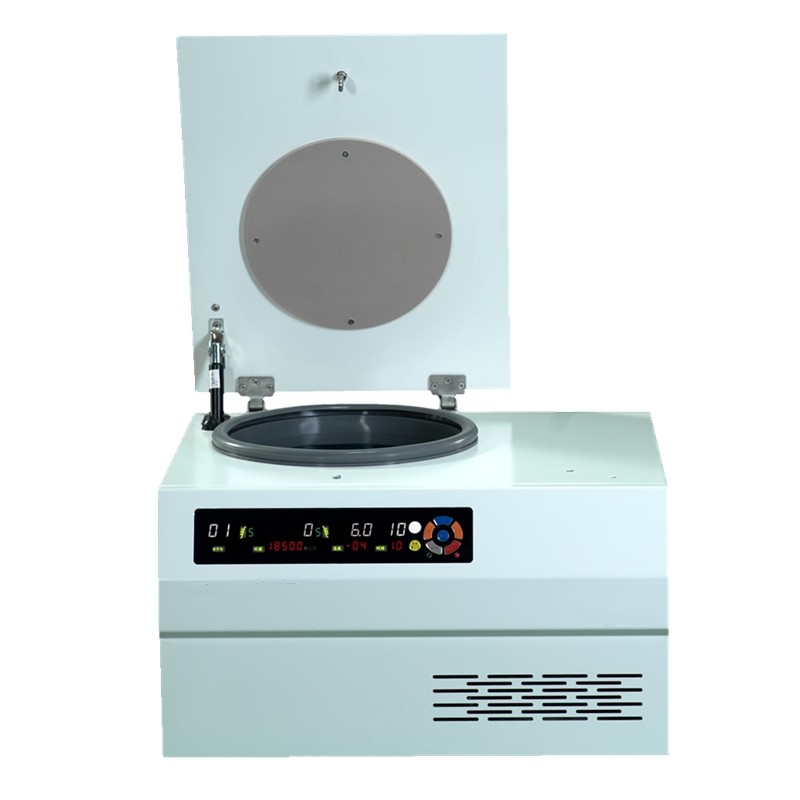

TG-20KR 20500rpm Refrigerated Centrifuge
Max Speed 20500rpm
Max RCF 31785xg
it with fixed angle rotor 0.5ml, 1.5/2.2ml, 5ml, 10ml, 15ml, 50ml,100ml etc.
Key Features:
1. Adopted great momentum force frequency variable motor to facilitate acceleration and deceleration and enhance efficiency.
2. Medium size, good compatibility, suitable for medium and small sized multi-functional experiments
3. Multi-color LED display, user-friendly, clearer and more direct display. .
4. Automatic recognition of rotors and speed limit control, making centrifuging safer
5. User able to set RPM, timing, RCF and acceleration/deceleration mode according to experiment requirement
6. automatic calculation and simultaneous display of RCF/RPM.
7. 10 types of accelerating/decelerating control, 15 groups of programming space, user able to program and call program freely
8. Automatic calculation and display RCF value, RPM and centrifugal force at the same time.
9. Protected by door lid and against over speed and imbalance to ensure the safety of operation
10. Imported high efficiency environmental friendly refrigerating system, able to maintain temperature under -4℃ during maximum RPM
11. With pre-cooling function, freezing centrifuging is more convenient.
Technical Parameter:
Model | TG-20KR | |||
Max RPM | 20500rpm | Voltage | AC 220±22V 50Hz 15A | |
Max RCF | 31785×g | Power | 1000W | |
Max Capacity | 4×100ml | Noise Level | ≤ 54dB(A) | |
Timer | 1min~99min | Rotor Diameter | φ280mm | |
Temp Range | -20℃~40℃ | Inner Dimensions | 480×560×360mm | |
Temp Accuracy | ±1.0℃ | Packaging Dimensions | 640×660×470mm | |
Revolutions/min | ±20r/min | Net weight | 70kg | |
Accerleration/Decelerations(Sec) | ≤15 | Gross weight | 80kg | |
Lid drop protection | Yes | Shorts spin function | Yes | |
Bulit in condensation drain | Yes | Rotoer imbalance detection | Yes | |
Fast temperature | Yes | Programme memory | Yes | |
Rotor | No | Capacity | MAX RPM/MAX RCF | |
Angle Rotor | 1 | 16×1.5/2.2ml | 20500rpm/31785×g | |
2 | 18×0.5ml | 16500rpm/17000×g | ||
3 | 12×5ml | 16000rpm/18090×g | ||
4 | 24×1.5/2.2ml | 15000rpm/21890×g | ||
5 | 36×1.5/2.2ml | 14000rpm/20025×g | ||
6 | 12×10ml | 14000rpm/19640×g | ||
7 | 4×8×0.2ml PCR Tube | 13500rpm/11610×g
| ||
8 | 6×50ml Round Tube | 13000rpm/17940×g | ||
9 | 6×50ml Conical Tube | 12000rpm/15450×g | ||
10 | 12×15ml Conical Tube | 12000rpm/15710×g | ||
11 | 4×100ml | 12000rpm/17915×g | ||
12 | 8x50ml Round Tube | 11000rpm/13450xg | ||
13 | 8x50ml Conical Tube | 10000rpm/12070xg | ||
Elisa plate Rotor | 14 | 2x2x48 plates | 4200rpm/1900×g |
