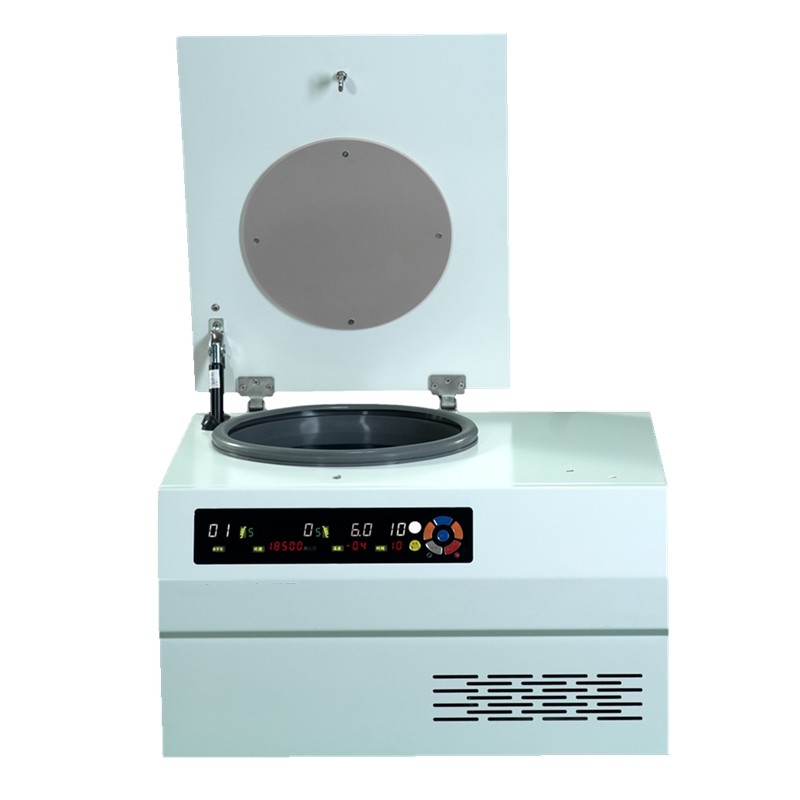

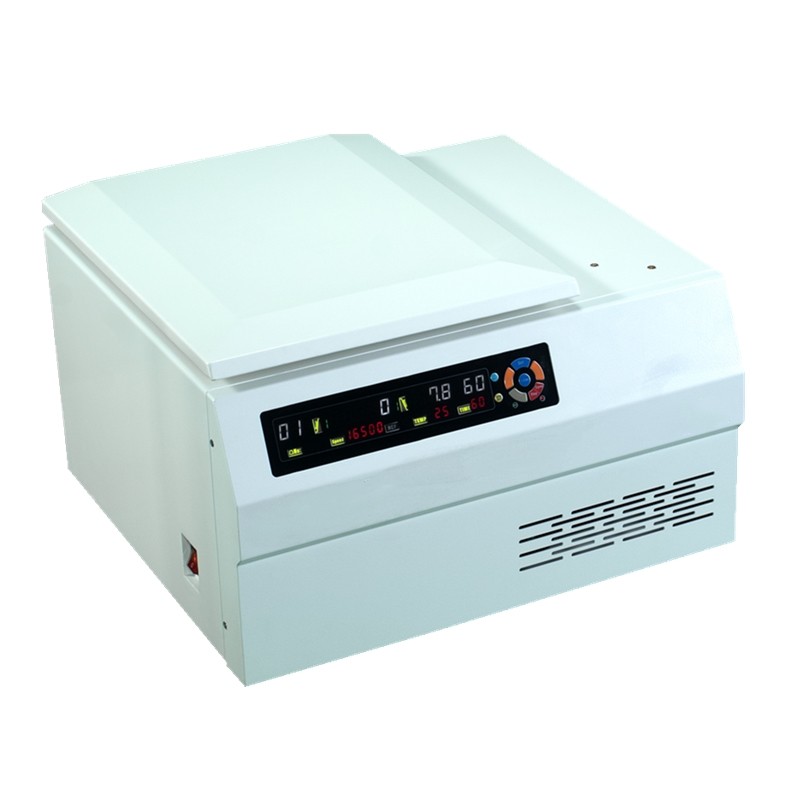

TG-18KR 18500rpm Refrigerated Centrifuge

TG-18KR 18500rpm Refrigerated Centrifuge
Max Speed 18500rpm
Max RCF 23900xg
it with fixed angle rotor 0.5ml, 1.5/2.2ml, 5ml, 10ml, 15ml, 50ml,100ml etc.

EMAIL

Key Features:


1.  Adopted great momentum force frequency variable motor to facilitate acceleration and deceleration and enhance efficiency.

2.  Medium footprint, good compatibility, suitable for medium and small sized multi-functional experiments

3.  Multi-color LED display, user-friendly, clearer and more direct display. .

4.  Automatic recognition of rotors and speed limit control, making centrifuging safer

5.  User able to set RPM, timing, RCF and acceleration/deceleration mode according to experiment requirement

6.  automatic calculation and simultaneous display of RCF/RPM.

7.  10 types of accelerating/decelerating control, 15 groups of programming space, user able to program and call program freely

8.  Protected by door lid and against over speed and imbalance to ensure the safety of operation

9.  Imported high efficiency environmental friendly refrigerating system, able to maintain temperature under -4℃ during maximum RPM

10.  Have pre-cooling function, freezing centrifuging is more convenient.



Technical Parameter



Model

TG-18KR

 Max RPM

18500rpm

Voltage

AC 220±22V 50Hz 15A

 Max RCF

23900×g

Power

800W

Max Capacity

4×100ml

Noise Level

φ280mm

Timer

1min99min

Rotor Diameter

≤ 65dBA

Temp Range

-20℃40℃

Inner Dimensions

480×560×360mm

Temp Accuracy

±1.0℃

Packaging Dimensions

640×660×470mm

Revolutions/min

±20r/min

Net weight

70kg

/

/

Gross weight

80kg

Rotor

No

Capacity

MAX RPM/MAX RCF

 Angle Rotor

1

12/16×1.5/2.2ml

18500rpm/23900×g

2

18×0.5ml

16000rpm/16000×g

3

10/12×5ml

15000rpm/15940×g

4

24×1.5/2.2ml

14000rpm/18757×g

5

12×10ml

13000rpm/17370×g

6

12×15ml Conical Tube

10000rpm/9690×g

7

4×100ml

10000rpm/9690×g

8

6×50ml Round Tube

12000rpm/15285×g

9

6×50ml Conical Tube

11000rpm/12840×g
