Max Speed 20500rpm
Max RCF 31785xg
Max Capacity 4x100ml
Key Features:
Medium footprint, good compatibility, suitable for medium and small sized multi-functional experiments
controlled by computer, AC frequency variable motor drive
Multi-color LCD display, user-friendly, clearer and more direct display.
User able to set RPM, timing, RCF and acceleration/deceleration mode according to experiment requirement
automatic calculation and simultaneous display of RCF/RPM.
10 types of accelerating/decelerating control, 15 groups of programming space, user able to program and call program freely
automatic calculation,adjustment, conversion and simultaneous display of RCF/RPM,
With electronic door lock, protection against over speed and imbalance, enhanced safety
with rotor of multiple capacity, suitable for multiple requirement for experiments
Overall Specifications:
CAT NO | TG-20K | |||
Max RPM | 20000rpm | Rotor Diameter | φ320mm | |
Max RCF | 26800×g | Noise Level | < 60dB(A) | |
Capacity | 4×100ml | Inner Dimensions | 440×360×330mm | |
Timer | 1min~99min | Outer Dimensions | 510×460×460mm | |
Revolutions/min | ±20r/min // | Without rotor | 30kg | |
Voltage | AC 220±22V 50Hz 10A | With Rotor | 35kg | |
Power | 450W | / | / | |

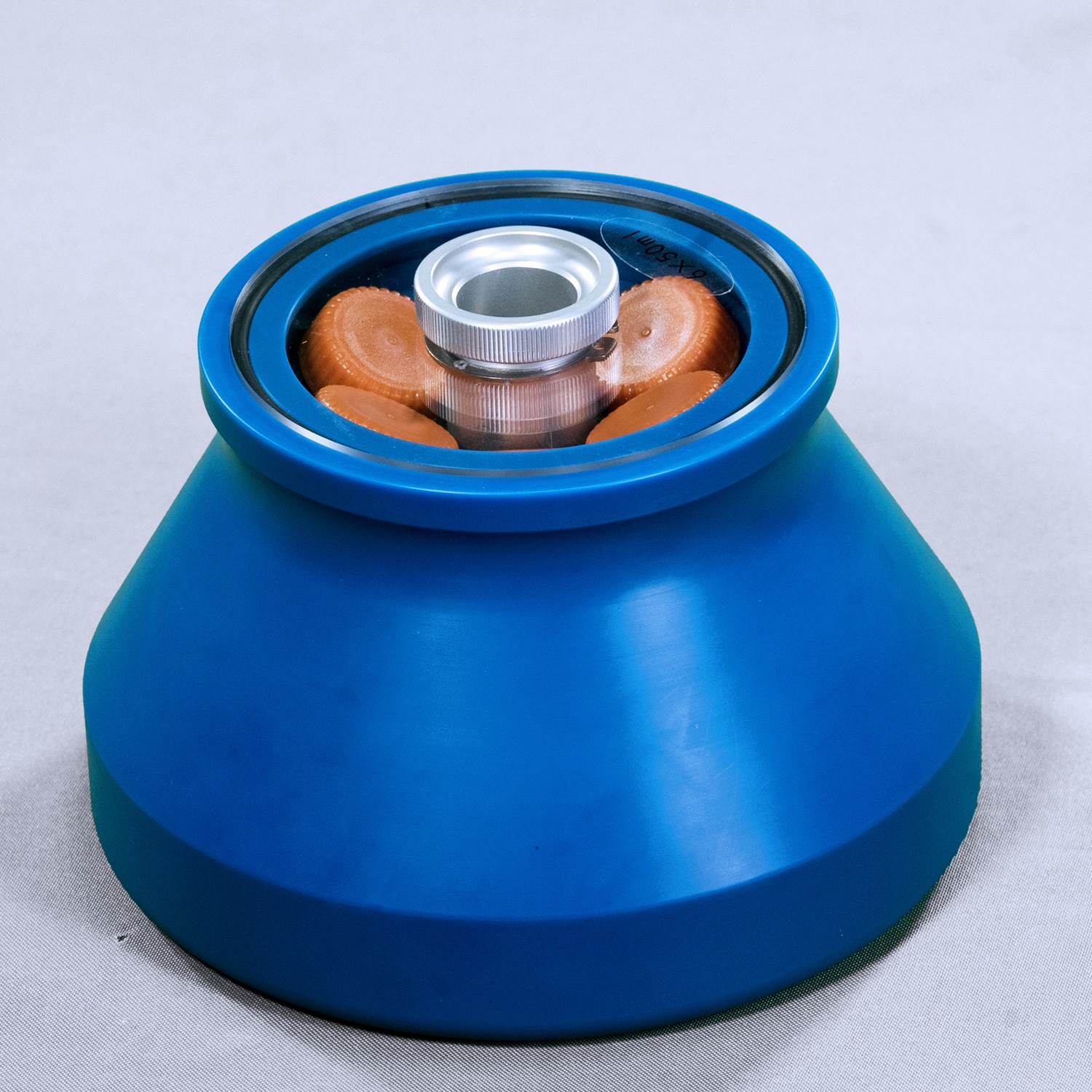

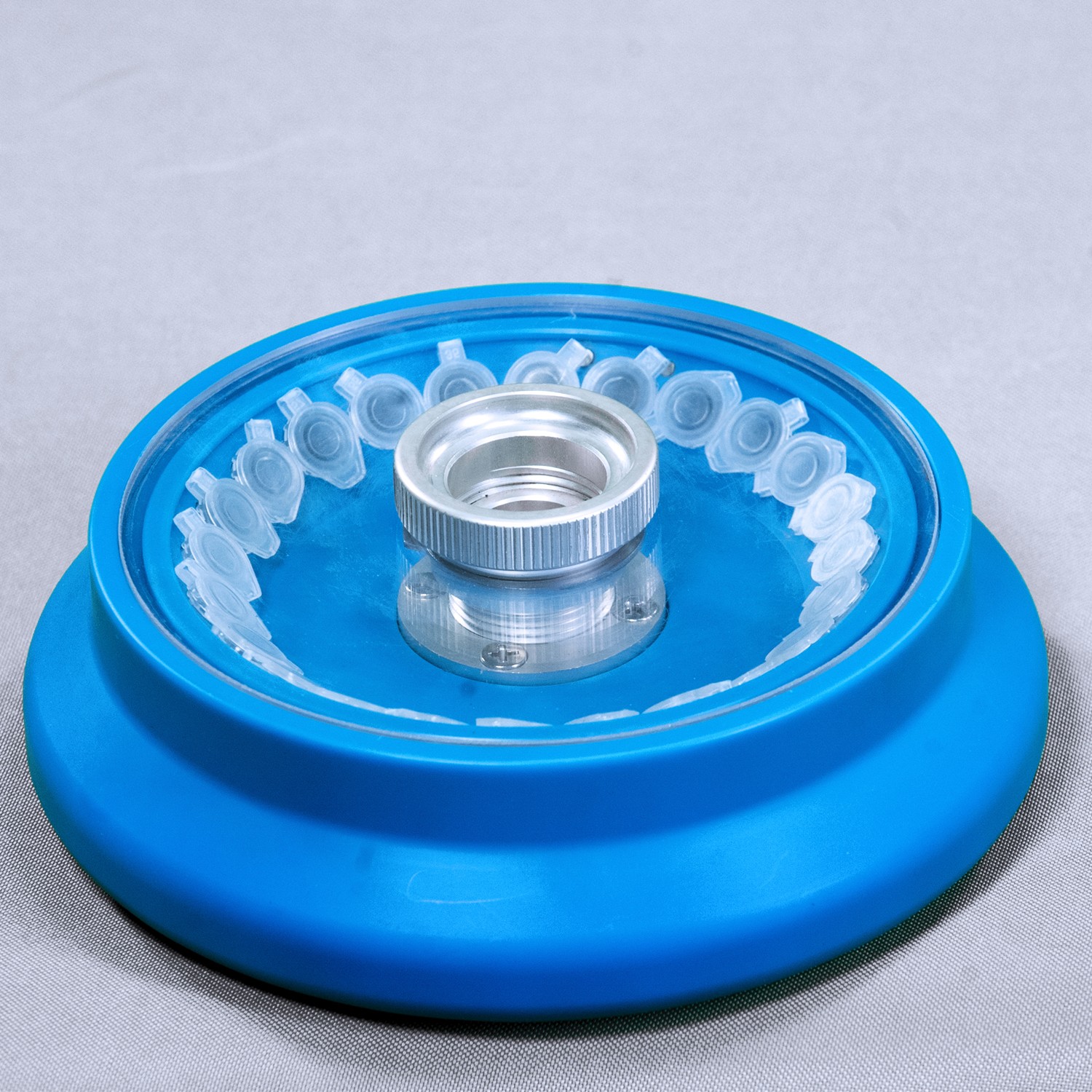

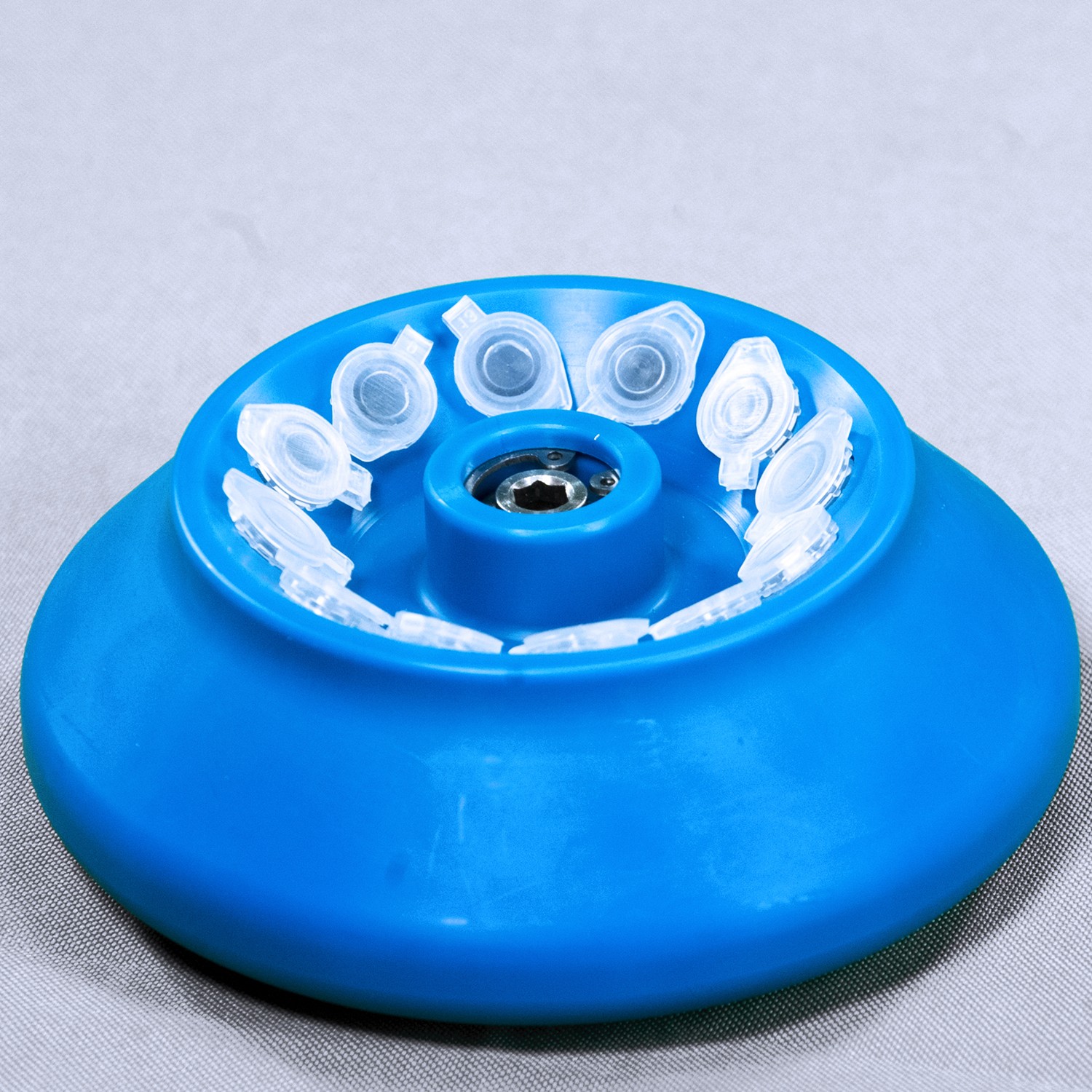

Rotor | No | Capacity | MAX RPM/MAX RCF | |
Rotor | 1 | 12×1.5ml | 20000rpm/26800×g | |
2 | 16×1.5/2.2ml | 18000rpm/23900×g | ||
3 | 18×0.5ml | 16500rpm/17000×g | ||
4 | 10×5ml | 16000rpm/ 17420×g | ||
5 | 24×1.5/2.2ml | 15000rpm/21532×g | ||

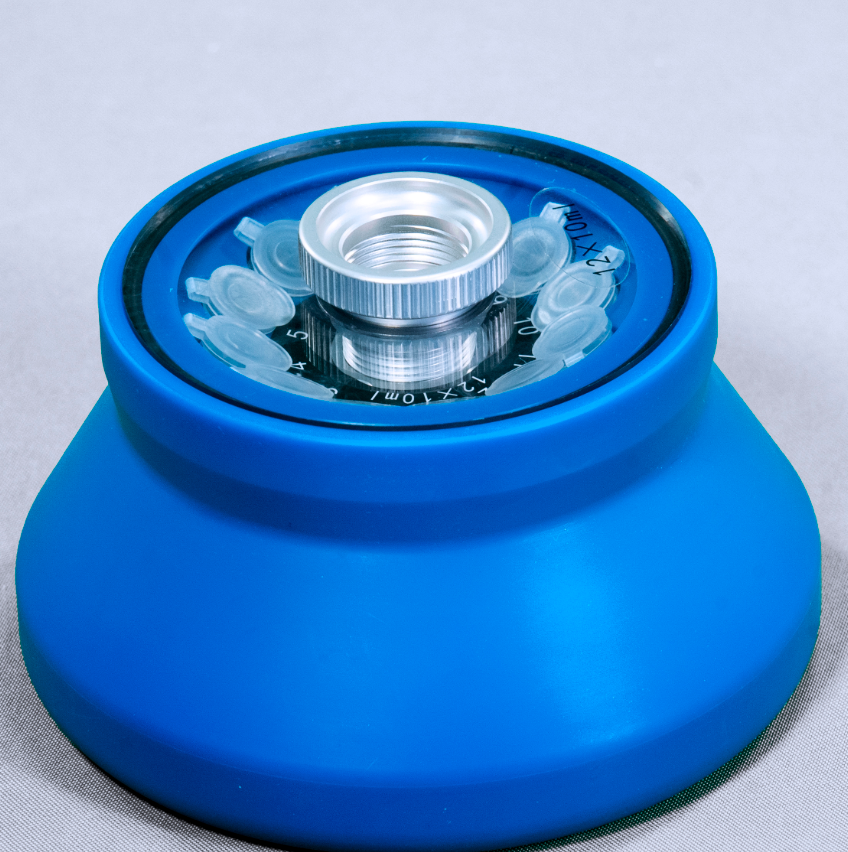

6 | 12×10ml | 14000rpm/19640×g | ||
7 | 2×8×0.2ml PCR | 13500rpm/13880×g | ||
8 | 6×50ml Round Tube | 13000rpm/17940×g | ||
9 | 6×50ml Conical Tube | 12000rpm/15450×g | ||
10 | 8×50ml | 11000rpm/13450×g | ||
11 | 12×15ml | 10000rpm/9690×g | ||

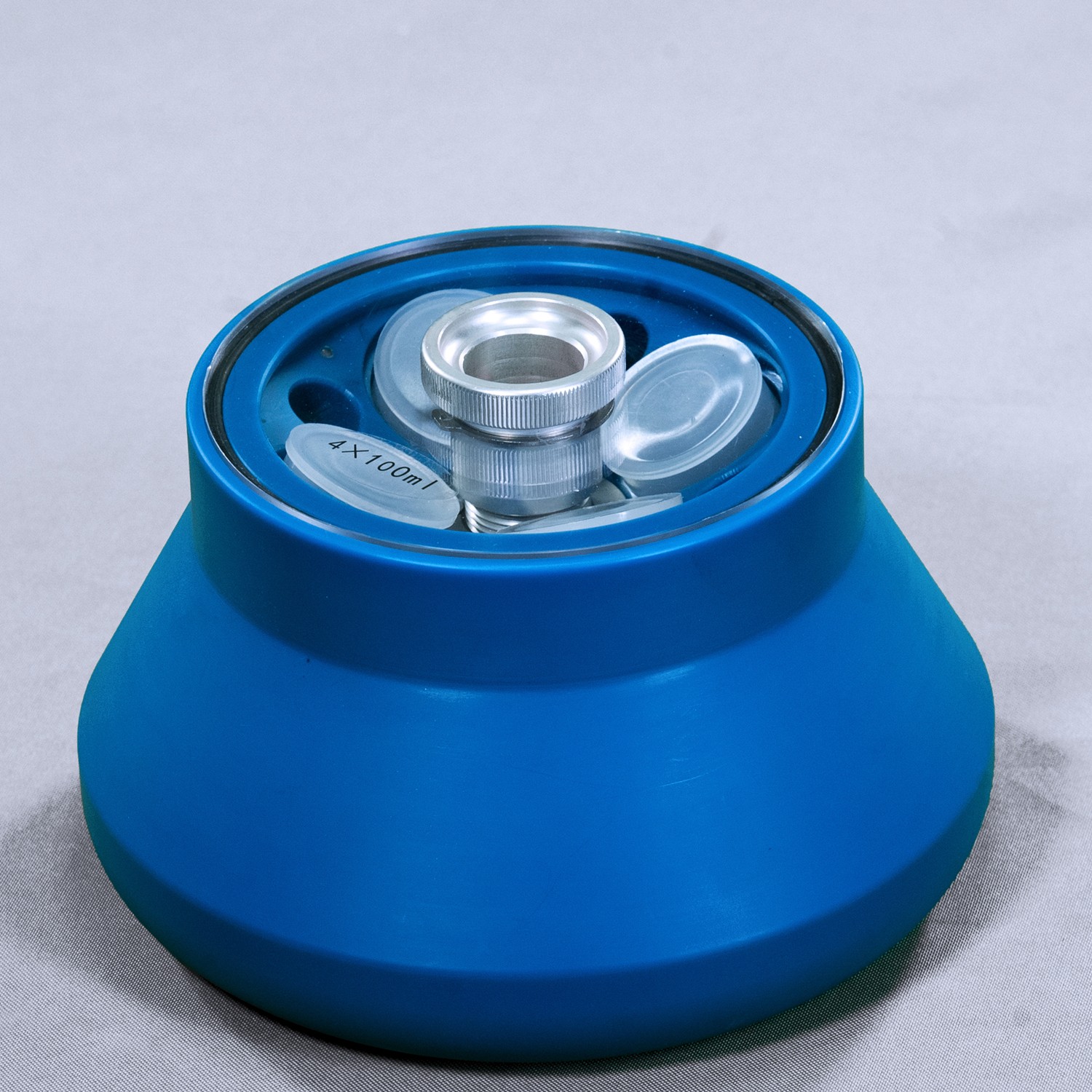

12 | 4×100ml | 10000rpm/9690×g | ||
Bucket | 13 | 16×10ml | 4200rpm/3100×g | |
Micro plates rotor | 14 | 2×2×48 well plates | 4200rpm/1900×g |
