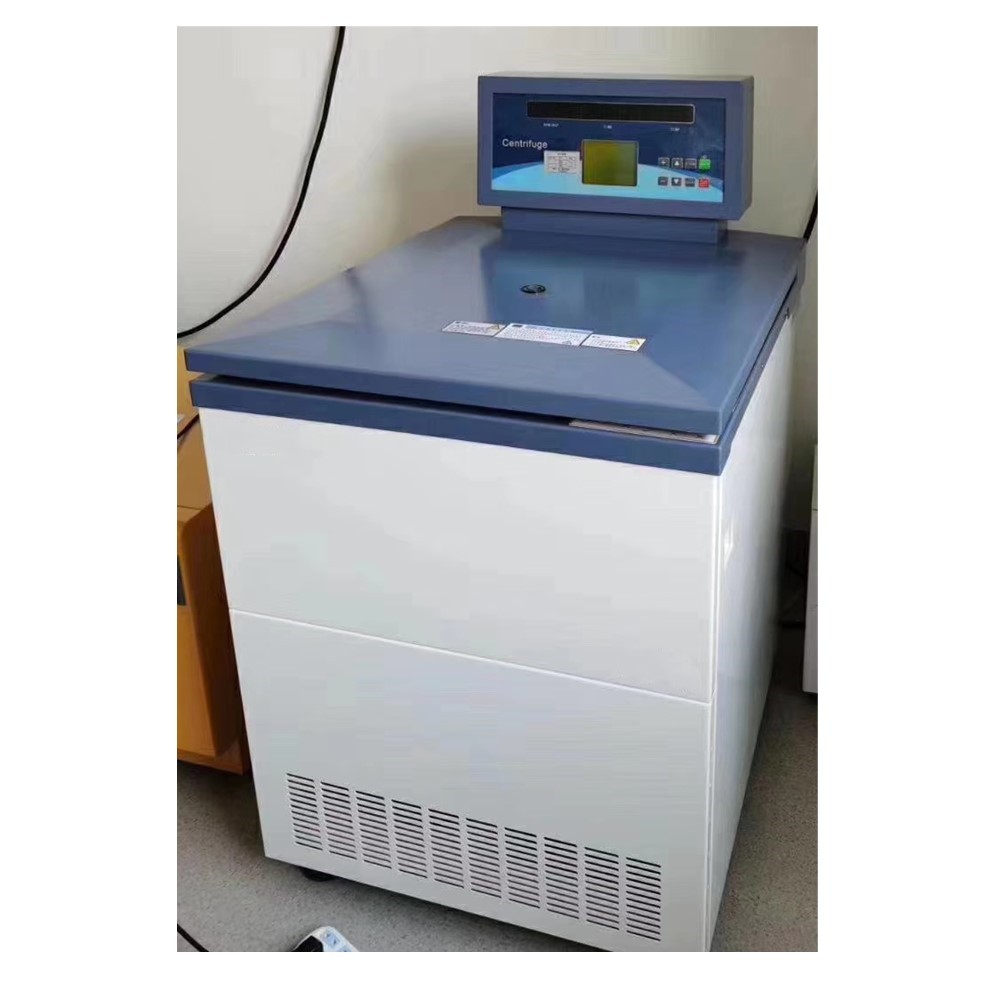

6x1000ml Refrigerated Centrifuge
Features:
1. RPM increase stepped in 100rpm, with accuracy as high as ±20rpm
2. Able to configure acceleration/deceleration time in the permitted range according to the user requirement
3. Auto detection of imbalance, over speed, over heat and door lock protection
4. Used refrigerant , which meets the environmental protection requirements. The temperature range is -20 ~ 40 DEG C, and the centrifugal cavity temperature can be maintained at 4 degrees at the highest rotational speed.
5. Optional self-correction balancing swivel. When swivel is out of balance, error message will be displayed, which will warning and machine will be stopped automatically. No need to balance if the weight difference between blood bags is 3*50g.
6. Adopted without carbon brush and variable-frequency motor to save trouble.
7. Machine made of steel with three layers of protection, safe and reliable
8. Minimal vibration, quiet operation, noise level lower than 65 dB

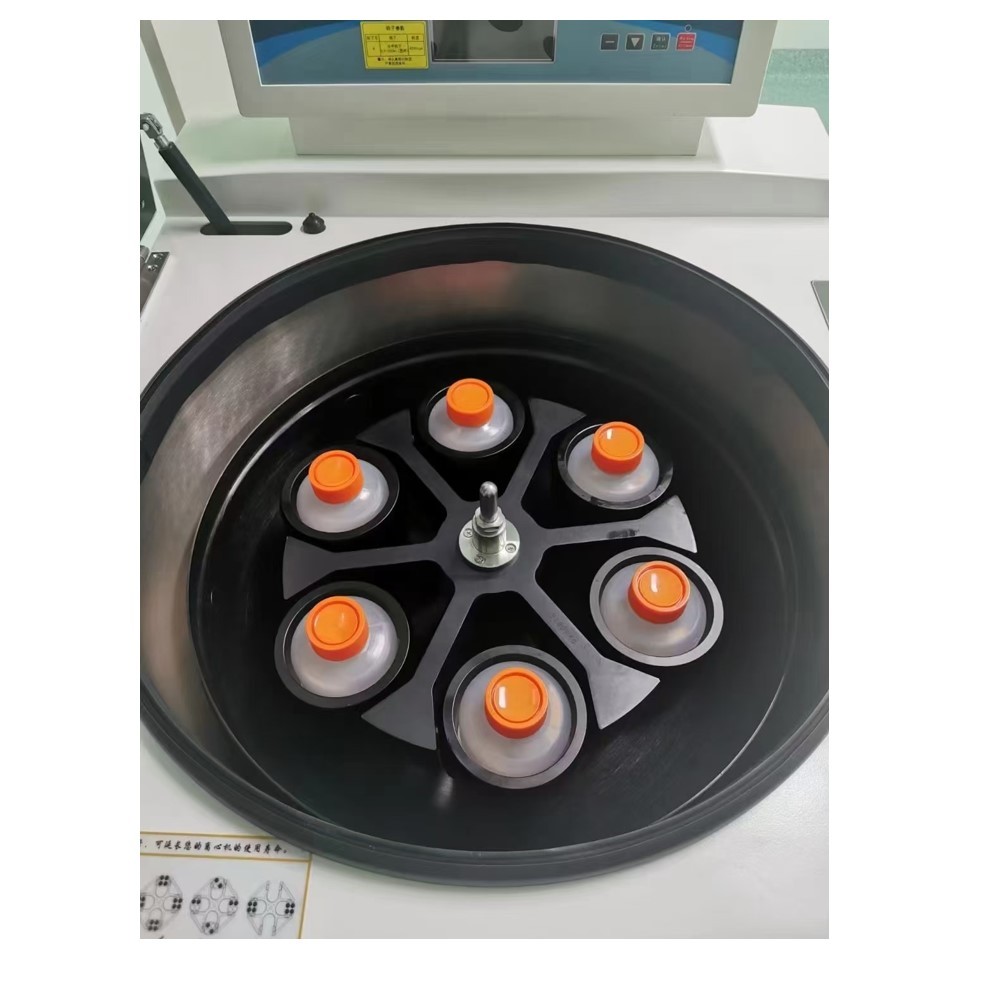

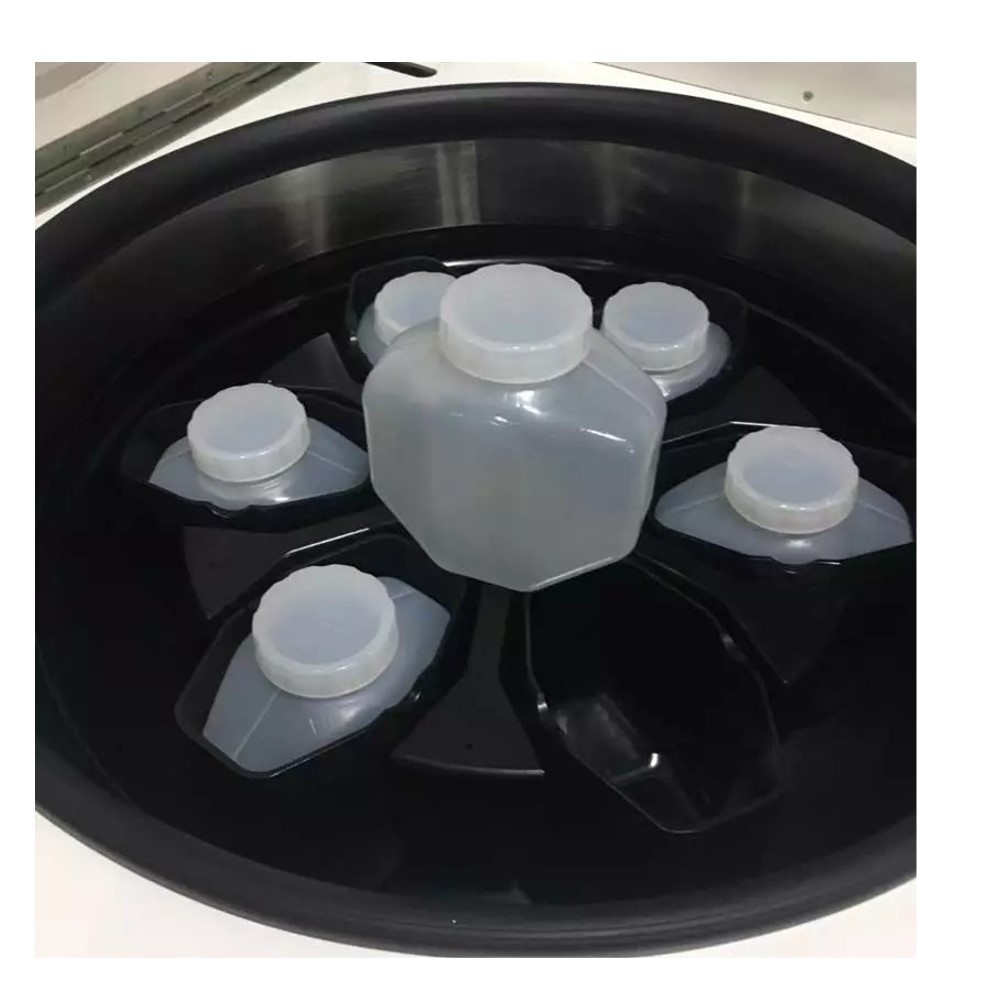

9. Blood bank specific horizontal square cup rotor 6×1000 ml, able to isolate 6 X 400 ml of 5 strip blood bags and 24 X 100ml platelet transferring bag.
FL-6KR is large capacity, stable and long lasting, electric control under constant optimization, equipped with the most recent super light large capacity rotor to enhance efficiency to a great deal.
Technical Parameter:
Model | FL-6KR | |||
Max RPM (rpm) | 6500rpm | power supply | AC 220±22V,50Hz,30A | |
Max RCF | 6680×g | total power | 4500W | |
Max Capacity | 6×1000ml | centrifuge chamber diameter | ≤ 65dB(A) | |
timing range | 1min~23h59min | dimensions (length x width x height) | φ600mm | |
Temp Range | -20℃~40℃ | packaging dimensions (length x width x height) | 840×730×1240mm | |
Temp Accuracy | ±2.0℃ | Net Weight | 940×830×1340mm | |
RPM accuracy | ±20r/min | Gross Weight | 260kg | |
/ | / | 300kg | ||
Rotor | No | Capacity | RPM/RCF | |
Angle Rotor | 1 | 6×250ml | 6500rpm/6610×g | |
2 | 6×300ml | 6500rpm/6610×g | ||
3 | 6×500ml | 6000rpm/6680×g | ||

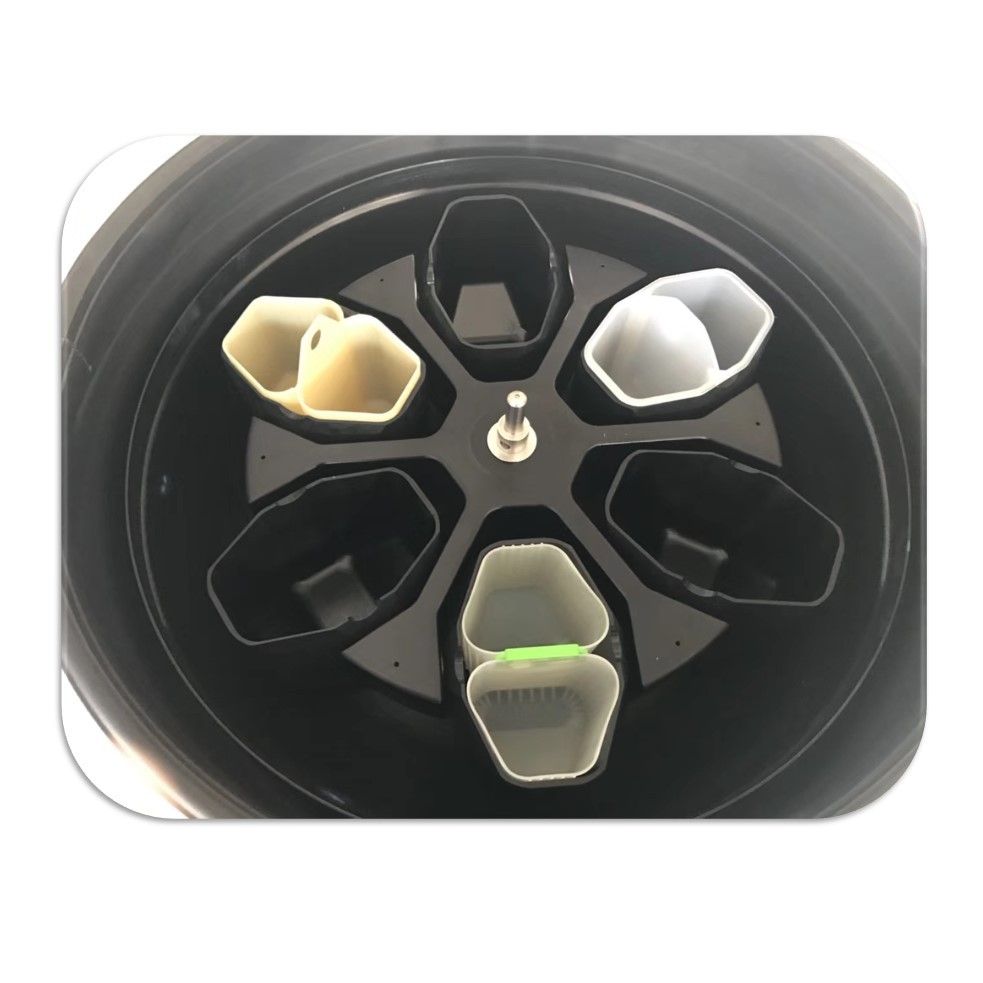

Swing-out Rotor | 4 | 6×1000mlSquare cup(round cup) | 4200rpm/5100×g |
